Terminals Of Ecu [03/2024 - ]

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

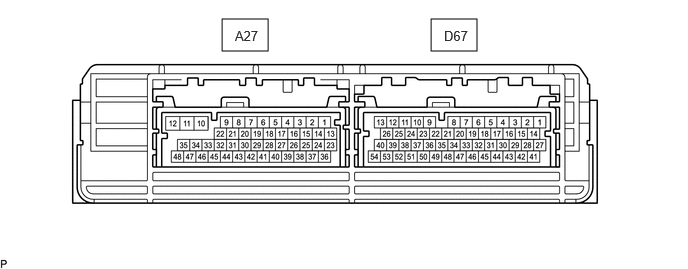

  1. HYBRID VEHICLE CONTROL ECU
    GTY1066349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No.
    (Symbol)    		 Terminal Description Condition Specified Condition
    D67-13 (BATT) - D67-15 (E1) Constant power source Always 10 to 14 V
    D67-7 (+B1) - D67-15 (E1) Power source Ignition switch ON 11 to 14 V
    D67-8 (+B2) - D67-15 (E1) Power source Ignition switch ON 11 to 14 V
    A27-33 (IGR) - D67-15 (E1) Power source Ignition switch ON 11 to 14 V
    D67-26 (IGP) - D67-15 (E1) Power source Ignition switch ON 11 to 14 V
    D67-43 (IGB) - D67-15 (E1) Power source Ignition switch ON 11 to 14 V
    A27-13 (HMCH) - D67-15 (E1) Communication signal Ignition switch ON Pulse generation
    (Waveform 1)
    A27-2 (HMCL) - D67-15 (E1) Communication signal Ignition switch ON Pulse generation
    (Waveform 1)
    D67-47 (MREL) - D67-15 (E1) Main relay Ignition switch ON 11 to 14 V
    A27-9 (HSDN) - D67-15 (E1) MG ECU shutdown signal Ignition switch ON (READY) 0 to 1.5 V
    A27-6 (STP) - D67-15 (E1) Stop light switch Brake pedal depressed 11 to 14 V
    Brake pedal released 0 to 1.5 V
    A27-28 (LIN3) - D67-15 (E1) LIN communication signal
    (A/C inverter, auxiliary battery state sensor)    		 Ignition switch ON (READY) Pulse generation
    A27-1 (DRN5) - Body ground Shield ground Ignition switch off Below 1 Ω
    A27-38 (VCPA) - A27-37 (EPA) Accelerator pedal (with sensor) rod assembly power source (for VPA) Ignition switch ON 4.5 to 5.5 V
    A27-26 (VCP2) - A27-25 (EPA2) Accelerator pedal (with sensor) rod assembly power source (for VPA2) Ignition switch ON 4.5 to 5.5 V
    A27-36 (VPA) - A27-37 (EPA) Accelerator pedal (with sensor) rod assembly (for accelerator pedal position detection) Ignition switch ON, accelerator pedal released 0.4 to 1.4 V
    Ignition switch ON, engine stopped, shift position in P, accelerator pedal fully depressed 2.6 to 4.5 V
    A27-39 (VPA2) - A27-25 (EPA2) Accelerator pedal (with sensor) rod assembly (for accelerator pedal sensor malfunction detection) Ignition switch ON, accelerator pedal released 1.0 to 2.2 V
    Ignition switch ON, engine stopped, shift position in P, accelerator pedal fully depressed 3.4 to 5.3 V
    D67-5 (SFTD) - D67-15 (E1) Transmission control switch Ignition switch ON, shift lever in S 11 to 14 V
    Ignition switch ON, shift lever in (-) 0 to 1.5 V
    D67-17 (SFTU) - D67-15 (E1) Transmission control switch Ignition switch ON, shift lever in S 11 to 14 V
    Ignition switch ON, shift lever in (+) 0 to 1.5 V
    A27-32 (NIWP) - D67-15 (E1) Inverter water pump assembly signal Ignition switch ON (READY) Pulse generation
    (Waveform 2)
    A27-31 (IWP) - D67-15 (E1) Inverter water pump assembly signal Ignition switch ON (READY) Pulse generation
    (Waveform 2)
    A27-41 (TTA) - A27-42 (ETTA) Transmission fluid temperature sensor Ignition switch ON, temperature 25°C (77°F) 3.6 to 4.6 V
    Ignition switch ON, temperature 60°C (140°F) 2.2 to 3.2 V
    A27-43 (MMT) - A27-44 (MMTG) Motor temperature sensor Ignition switch ON, temperature 25°C (77°F) 3.6 to 4.6 V
    Ignition switch ON, temperature 60°C (140°F) 2.2 to 3.2 V
    A27-45 (GMT) - A27-46 (GMTG) Generator temperature sensor Ignition switch ON, temperature 25°C (77°F) 3.6 to 4.6 V
    Ignition switch ON, temperature 60°C (140°F) 2.2 to 3.2 V
    D67-54 (RMT) - D67-53 (RMTG) Rear motor temperature sensor Ignition switch ON, temperature 25°C (77°F) 3.6 to 4.6 V
    Ignition switch ON, temperature 60°C (140°F) 2.2 to 3.2 V
    D67-32 (ILK) - D67-15 (E1) Interlock switch Ignition switch ON, service plug grip installed correctly 0 to 1.5 V
    Ignition switch ON, service plug grip not installed 11 to 14 V
    D67-24 (CA3P) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 3)
    D67-11 (CA3N) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 3)
    D67-22 (CA1L) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 4)
    D67-9 (CA1H) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 4)
    D67-10 (CA4H) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 5)
    D67-23 (CA4L) - D67-15 (E1) CAN communication signal Ignition switch ON Pulse generation
    (Waveform 5)
    D67-27 (SMRG) - A27-10 (E01) System main relay operation signal Ignition switch ON→Ignition switch ON (READY) Pulse generation
    (Waveform 6)
    D67-16 (SMRP) - A27-10 (E01) System main relay operation signal Ignition switch ON→Ignition switch ON (READY) Pulse generation
    (Waveform 6)
    D67-2 (SMRB) - A27-10 (E01) System main relay operation signal Ignition switch ON→Ignition switch ON (READY) Pulse generation
    (Waveform 6)
    D67-51 (ALSD) - D67-15 (E1) TRAIL mode switch Ignition switch ON, TRAIL mode switch not operated 11 to 14 V
    Ignition switch ON, TRAIL mode switch operated 0 to 1.5 V
    D67-12 (SBFS) - D67-15 (E1) Electronic shift lever system fail-safe signal Ignition switch ON Pulse generation
    (Waveform 7)
    A27-5 (ST1-) - D67-15 (E1) Stop light switch signal Ignition switch ON, brake pedal depressed 0 to 1.5 V
    Ignition switch ON, brake pedal released 11 to 14 V
    D67-33 (EVSW) - D67-15 (E1) EV drive mode switch signal Ignition switch ON, EV mode switch not operated 11 to 14 V
    Ignition switch ON, EV mode switch operated 0 to 1.5 V
    D67-37 (SPRT) - D67-15 (E1) Drive mode select switch signal Ignition switch ON, drive mode select switch not turned 11 to 14 V
    Ignition switch ON, drive mode select switch being turned and held 0 to 1.5 V
    D67-38 (NORM) - D67-15 (E1) Drive mode select switch signal Ignition switch ON, drive mode select switch not turned 11 to 14 V
    Ignition switch ON, drive mode select switch being turned and held 0 to 1.5 V
    D67-4 (ST2) - D67-15 (E1) Starter signal Ignition switch ON 0 to 1.5 V
    A27-10 (E01) - Body ground Ground Always Below 1 Ω
    D67-1 (E12) - Body ground Ground Always Below 1 Ω
    D67-15 (E1) - Body ground Ground Always Below 1 Ω
    1. Oscilloscope waveforms

      HINT:

      Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

      1. Waveform 1 (Communication signal)
        Item Content
        Terminal CH1: A27-13 (HMCH) - D67-15 (E1)
        CH2: A27-2 (HMCL) - D67-15 (E1)
        Equipment Setting 1 V/DIV., 50 μs./DIV.
        Condition Ignition switch ON

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).

        GTY763773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

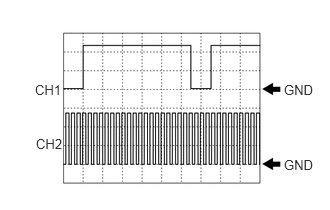

      2. Waveform 2 (Inverter water pump assembly signal)
        Item Content
        Terminal CH1: A27-31 (IWP) - D67-15 (E1)
        CH2: A27-32 (NIWP) - D67-15 (E1)
        Equipment Setting 5 V/DIV., 20 ms./DIV.
        Condition Ignition switch ON (READY)
        GTY810898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The duty of the IWP signal and the frequency of the NIWP signal change according to the coolant (for inverter) temperature.

      3. Waveform 3 (CAN communication signal)
        Item Content
        Terminal CH1: D67-24 (CA3P) - D67-15 (E1)
        CH2: D67-11 (CA3N) - D67-15 (E1)
        Equipment Setting 1 V/DIV., 50 μs./DIV.
        Condition Ignition switch ON

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).

        GTY773655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Waveform 4 (CAN communication signal)
        Item Content
        Terminal CH1: D67-9 (CA1H) - D67-15 (E1)
        CH2: D67-22 (CA1L) - D67-15 (E1)
        Equipment Setting 1 V/DIV., 50 μs./DIV.
        Condition Ignition switch ON

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).

        GTY763772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Waveform 5 (CAN Communication signal)
        Item Content
        Terminal CH1: D67-10 (CA4H) - D67-15 (E1)
        CH2: D67-23 (CA4L) - D67-15 (E1)
        Equipment Setting 1 V/DIV., 50 μs./DIV.
        Condition Ignition switch ON

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).

        GTY763772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Waveform 6 (System main relay operation signal)
        Item Content
        Terminal CH1: D67-16 (SMRP) - A27-10 (E01)
        CH2: D67-2 (SMRB) - A27-10 (E01)
        CH3: D67-27 (SMRG) - A27-10 (E01)
        Equipment Setting 10 V/DIV., 200 ms./DIV.
        Condition Ignition switch ON → Ignition switch ON (READY)
        GTY746398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).

      7. Waveform 7 (Electronic shift lever system fail-safe signal)
        GTY1052330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Item Content
        Terminal D67-12 (SBFS) - D67-15 (E1)
        Equipment Setting 5 V/DIV., 150 ms./DIV.
        Condition Ignition switch ON (READY)

        HINT:

        The waveform will vary depending on the content of the digital communication (digital signal).
