Blower Motor Circuit [11/2021 - ]: Procedure

1. Perform the Active Test according to the display on the GTS.

   Body Electrical > Air Conditioner > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Blower Level	This test activates the Blower Motor to adjust the air volume High/Low. (Blower motor with fan sub-assembly)	0: Air Volume Low 31: Air Volume High	Operate with ignition switch ON.

   Body Electrical > Air Conditioner > Active Test

   Tester Display
   Blower Level

   Result

   Result	Proceed to
   Blower motor with fan sub-assembly does not operate	A
   Blower motor with fan sub-assembly operates but does not change speed	B

Result:

B

See step  5

Result:

A

See step  2

1. Disconnect the A15 blower motor with fan sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rear view of wire harness connector (to Blower Motor with Fan Sub-assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A15-1 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A15-3 (+B) - Body ground	Ignition switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the D52 air conditioning amplifier assembly connector.
2. Disconnect the A15 blower motor with fan sub-assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D52-21 (BLW) - A15-2 (SI)	Always	Below 1 Ω
   D52-21 (BLW) or A15-2 (SI) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Connect the A15 blower motor with fan sub-assembly connector.
2. Disconnect the D52 air conditioning amplifier assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D52-21 (BLW) - Body ground	Always	4.75 to 5.25 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

Result:

OK

See step  5

1. Connect the D52 air conditioning amplifier assembly connector.

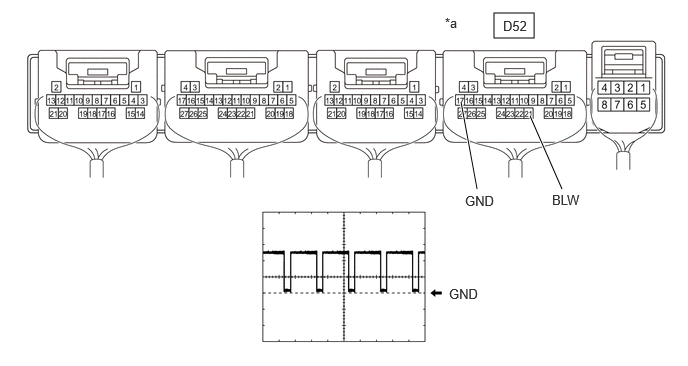

2. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Air Conditioning Amplifier Assembly)

   -

   -

   Item	Content
   Terminal No.	D52-21 (BLW) - D52-17 (GND)
   Tool Setting	2 V/DIV., 1 ms./DIV.
   Condition	Ignition switch ON Blower speed: LO

   HINT:

   The waveform varies with the blower speed.

   OK

   Waveform is similar to that shown in the illustration.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to  DISASSEMBLY [11/2021 - ]

Result:

NG

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [11/2021 - ]
