System Diagram [11/2021 - 03/2023]

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
    GTY1205735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

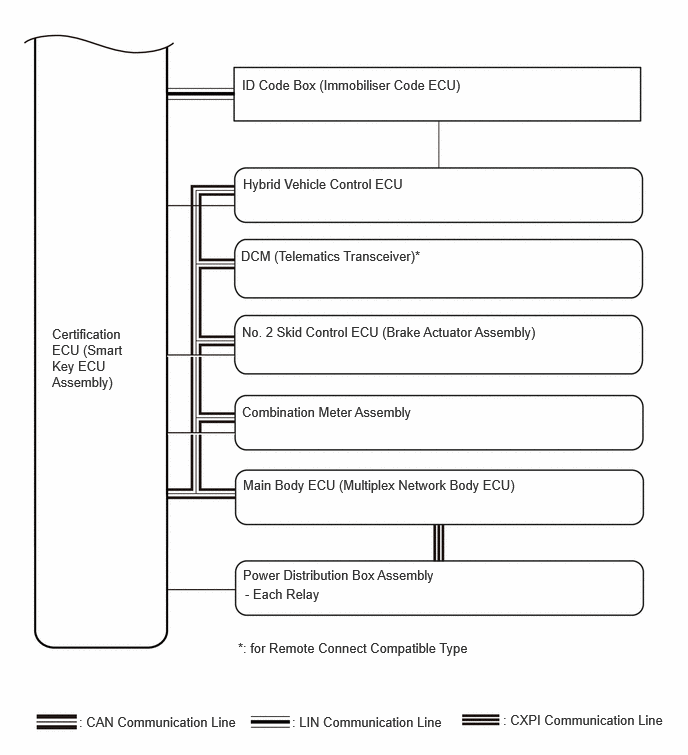

    GTY1203590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Refer to SYSTEM DIAGRAM [11/2021 - 03/2023]
