Installation [11/2021 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

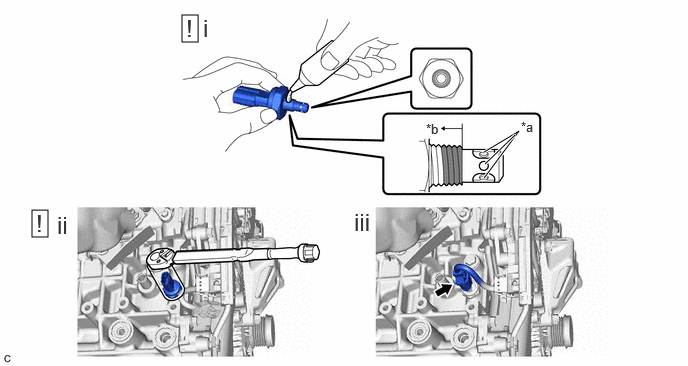

   *a	Oil Inlet Port	*b	3 Threads or More
   	Adhesive Application Area	-	-

   1. Apply adhesive to the area shown in the illustration.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

      NOTE:

      • Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.
      • Apply the adhesive to the first 3 threads or more of the oil pressure and temperature sensor.
      • Apply adhesive to the entire circumference of the thread.
   2. Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

      Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

      NOTE:

      Do not start the engine within 1 hour of installation.

   3. Connect the oil pressure and temperature sensor connector.

Refer to PROCEDURE - Step 6 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - ]

Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

See step  6
