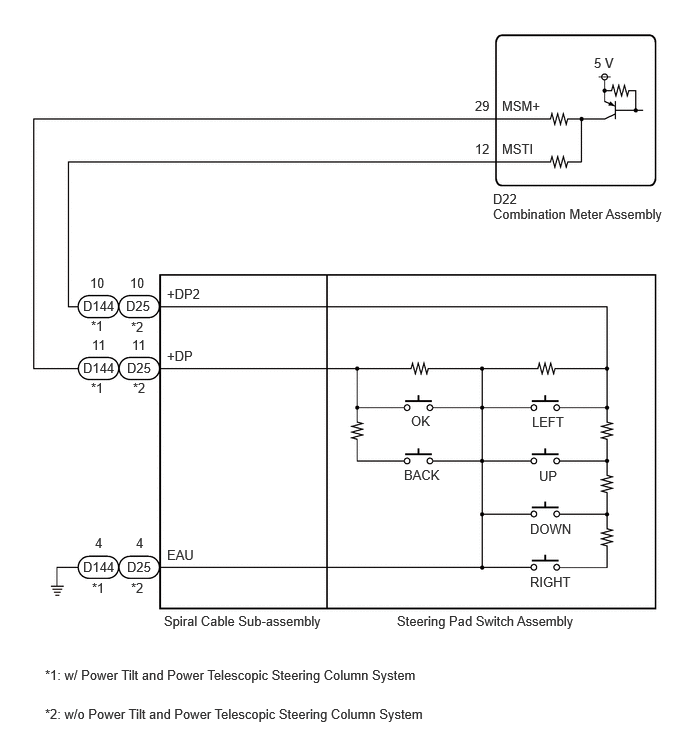

Steering Pad Switch Circuit [11/2021 - ]: Wiring Diagram

GTY1071846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
