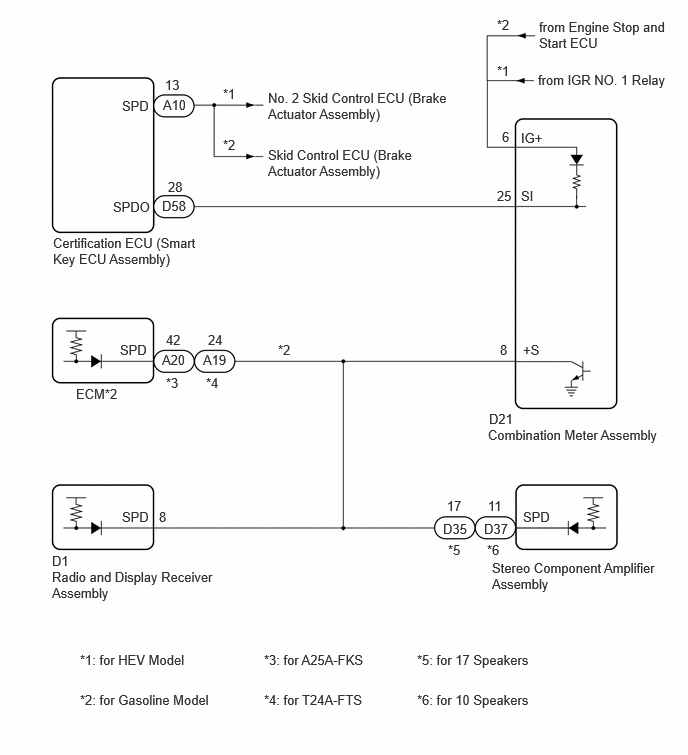

Speed Signal Circuit [11/2021 - 03/2024]: Wiring Diagram

GTY1254857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
