Speed Signal Circuit [03/2024 - ]: Wiring Diagram

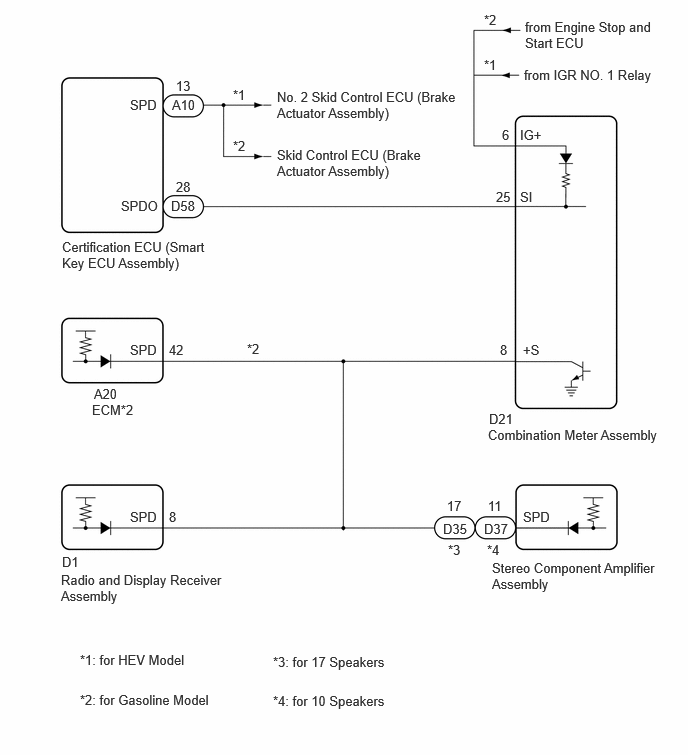

GTY1254207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
