The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during kick door control sensor assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED (FOR HEV MODEL)
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Ultrasonic sensor |
|
|
Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] |
| Advanced Park (w/ Advanced Park) | Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] |
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED (FOR GASOLINE MODEL)
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Ultrasonic sensor |
|
|
Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] |
NOTE:
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- for HEV Model:ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lighting System (EXT) Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [11/2021 - ] Front Camera System Adaptive High Beam System ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLYEffect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link E-latch System - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2021 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. - - for Gasoline Model:ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lighting System (EXT) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2021 - ] Front Camera System Adaptive High Beam System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ] ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLYEffect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link E-latch System - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2021 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -

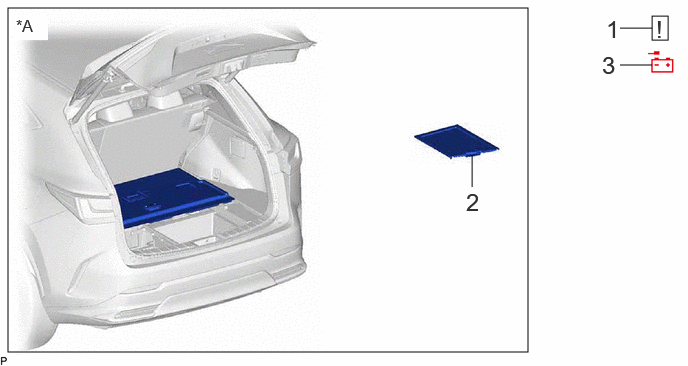

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | BATTERY SERVICE COVER PLATE | 58491E | - | - | - |
| 3 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | for HEV Model | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | REAR BUMPER ASSEMBLY | - | - | - | - |
| 5 | KICK DOOR CONTROL SENSOR ASSEMBLY | 891B0 | - | - | - |
