Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filler opening lid sub-assembly removal/installation are shown below.

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

• for HEV Model:
  ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE



  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Lighting System (EXT)	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [11/2021 - ]
  Front Camera System
  Adaptive High Beam System

  ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLY



  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
  Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

• for Gasoline Model:
  ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE



  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Lighting System (EXT)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2021 - ]
  Front Camera System
  Adaptive High Beam System
  Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ]

  ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLY



  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
  Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

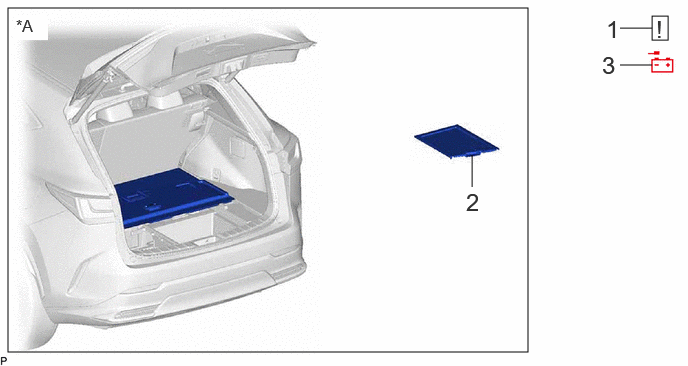

Fig 1: Fuel Lid Opener Unit Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	BATTERY SERVICE COVER PLATE	58491E	-	-	-
3	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-

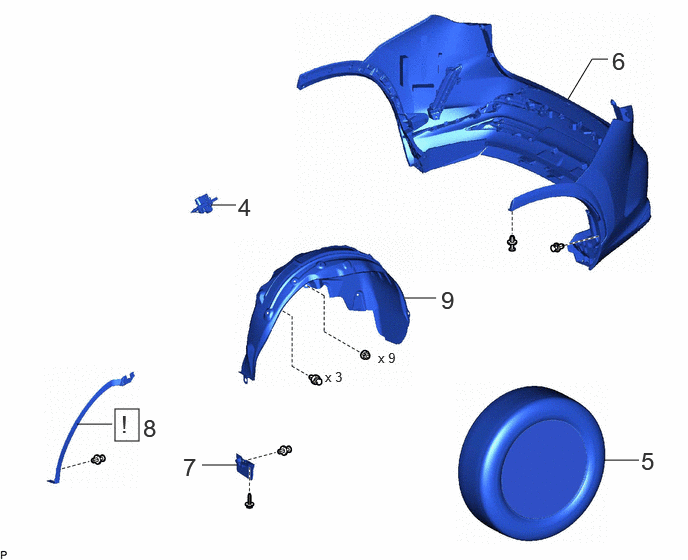

Fig 2: Fuel Lid Opener Unit Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
4	FUEL LID LOCK WITH MOTOR ASSEMBLY	77030A	-	-	-
5	REAR WHEEL LH	-	-	-	-
6	REAR BUMPER ASSEMBLY	-	-	-	-
7	REAR WHEEL HOUSE FRONT PLATE LH	65632D	-	-	-
8	QUARTER WHEEL OPENING MOULDING LH	75874A	See step  8	-	-
9	REAR WHEEL HOUSE LINER LH	65638	-	-	-

Fig 3: Fuel Lid Opener Unit Removal Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
10	FUEL FILLER OPENING LID ASSEMBLY	77350	See step  10	-	-
11	FUEL TANK CAP ASSEMBLY	77310A	-	-	-
12	FUEL FILLER OPENING LID SUB-ASSEMBLY	77305A	See step  12	-	-
