Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 5
  5. REMOVE BACK DOOR INSIDE HANDLE
    Refer to PROCEDURE - Step 6
  6. REMOVE SWITCH BASE (w/ Power Back Door)
    Refer to PROCEDURE - Step 7
  7. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 8

  8. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 9

  9. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    1. w/o Power Back Door:

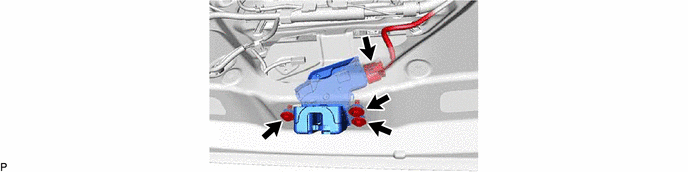

      GTY1053012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Power Back Door:
      GTY1053343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
