Caution / Notice / Hint

COMPONENTS (INSTALLATION)

Procedure		Part Name Code

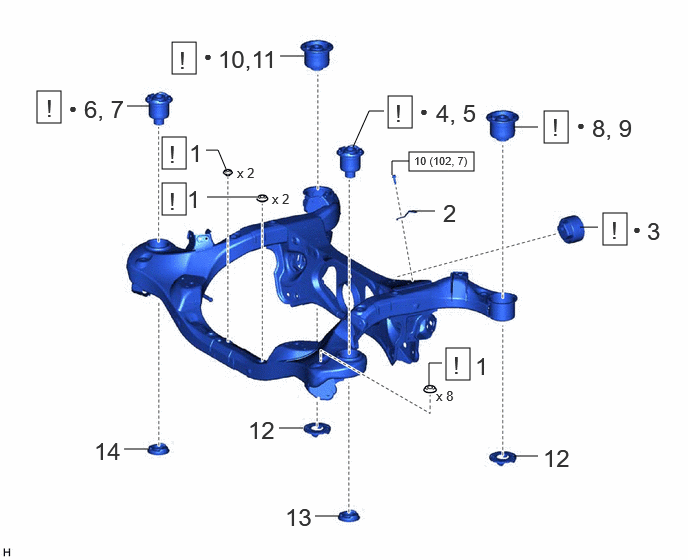

1	HOLE PLUG	-	See step  1	-	-
2	WIRE HARNESS CLAMP BRACKET	-	-	-	-
3	REAR MOTOR MOUNTING INSULATOR	G2371A	See step  3	-	-
4	TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH	52272A	See step  4	-	-
5	INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH	52272A	See step  5	-	-
6	TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH	52271E	See step  6	-	-
7	INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH	52271E	-	-	-
8	TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH	52276A	See step  8	-	-
9	INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH	52276A	See step  9	-	-
10	TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH	52275B	See step  10	-	-
11	INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH	52275B	-	-	-
12	REAR LOWER REAR SUSPENSION MEMBER STOPPER	52278C	-	-	-
13	REAR SUSPENSION MEMBER LOWER STOPPER RETAINER LH	52278A	-	-	-
14	REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH	52277A	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

•

Non-reusable part

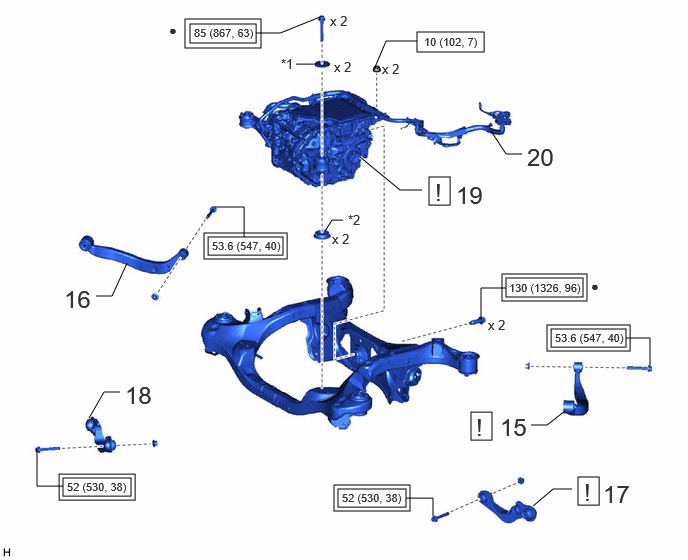

Procedure		Part Name Code
15	REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH	48790F	See step  15	-	-
16	REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH	48790E	-	-	-
17	REAR UPPER CONTROL ARM ASSEMBLY LH	48790	See step  17	-	-
18	REAR UPPER CONTROL ARM ASSEMBLY RH	48770A	-	-	-
19	REAR TRANSAXLE WITH MOTOR AND INVERTER ASSEMBLY	30610A	See step  19	-	-
20	FRAME WIRE	82164	-	-	-

*1	UPPER MOTOR MOUNTION STOPPER	*2	LOWER MOTOR MOUNTION STOPPER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

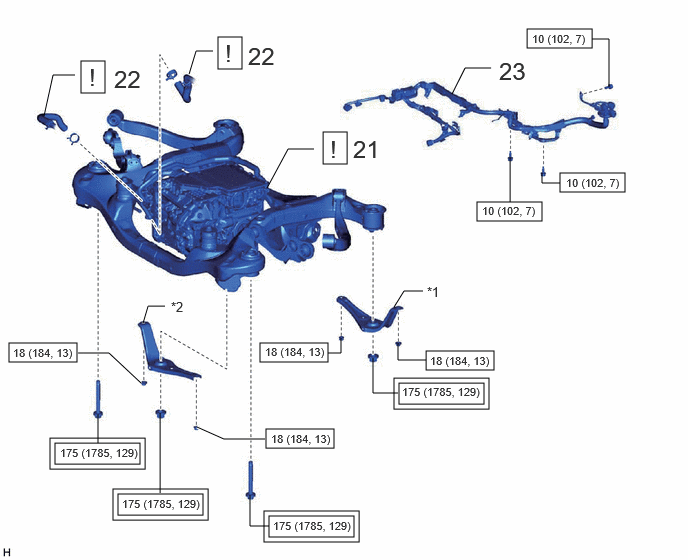

Procedure		Part Name Code
21	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	See step  21	-	-
22	INVERTER COOLING HOSE ASSEMBLY	-	See step  22	-	-
23	CONNECT FRAME WIRE	82164	-	-	-

*1	REAR LOWER REAR SUSPENSION MEMBER BRACE LH	*2	REAR LOWER REAR SUSPENSION MEMBER BRACE RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

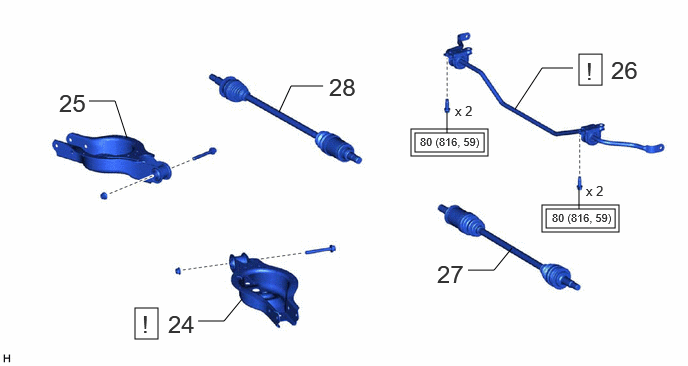

Procedure		Part Name Code
24	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	48740F	See step  24	-	-
25	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48730F	-	-	-
26	REAR STABILIZER BAR	48812	See step  26	-	-
27	REAR DRIVE SHAFT ASSEMBLY LH	42340B	-	-	-
28	REAR DRIVE SHAFT ASSEMBLY RH	42330	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

-

-

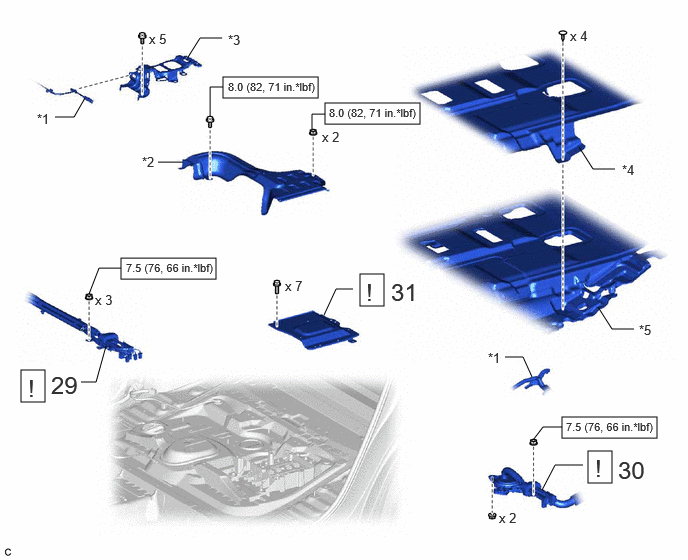

Procedure		Part Name Code
29	FLOOR UNDER WIRE	821H1	See step  29	-	-
30	NO. 3 HIGH VOLTAGE FLOOR UNDER WIRE	-	See step  30	-	-
31	JUNCTION BLOCK COVER	82672A	See step  31	-	-

*1	FLOOR WIRE	*2	WIRING HARNESS CLAMP BRACKET
*3	NO. 3 CONSOLE BOX MOUNTING BRACKET	*4	FRONT FLOOR CARPET ASSEMBLY
*5	NO. 1 REAR FLOOR SILENCER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

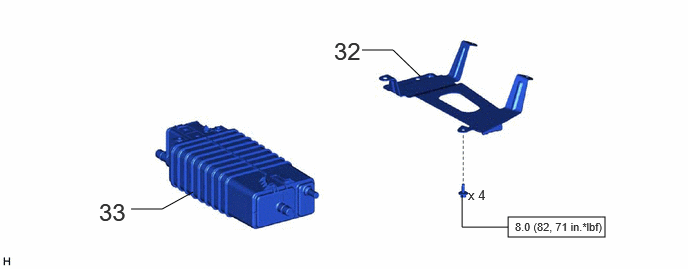

Procedure		Part Name Code
32	CHARCOAL CANISTER BASE BRACKET	77751	-	-	-
33	CHARCOAL CANISTER ASSEMBLY	77740	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

-

-

Procedure		Part Name Code

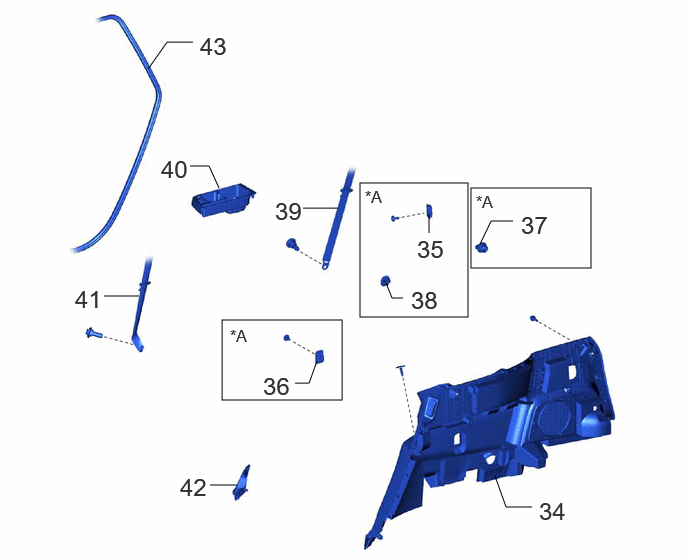

34	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-
35	ROPE HOOK ASSEMBLY	66310H	-	-	-
36	ROPE HOOK	66311	-	-	-
37	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
38	DECK TRIM POCKET COVER	64974	-	-	-
39	REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH	73570	-	-	-
40	DECK SIDE TRIM COVER LH	64715C	-	-	-
41	REAR SEAT OUTER BELT ASSEMBLY LH	73370E	-	-	-
42	CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH	73296A	-	-	-
43	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332C	-	-	-

*A

for LH Side

-

-

Procedure		Part Name Code

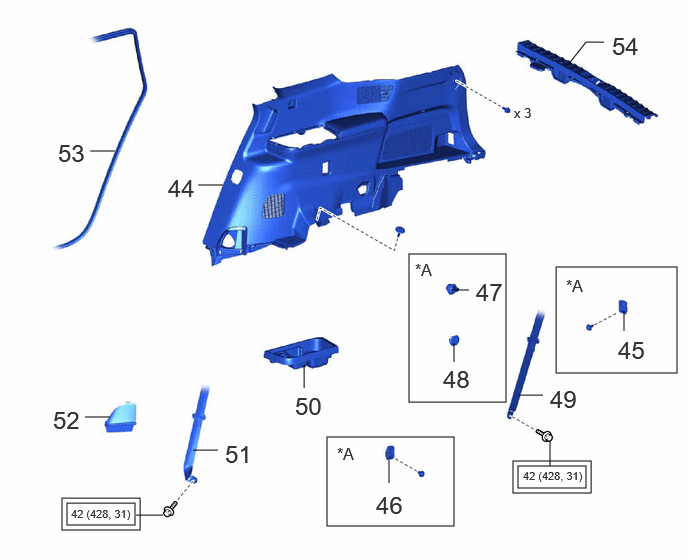

44	DECK TRIM SIDE PANEL ASSEMBLY RH	64730B	-	-	-
45	ROPE HOOK ASSEMBLY	66310H	-	-	-
46	ROPE HOOK	66311	-	-	-
47	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
48	DECK TRIM POCKET COVER	64974	-	-	-
49	REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH	73560	-	-	-
50	DECK SIDE TRIM COVER RH	64714C	-	-	-
51	REAR SEAT OUTER BELT ASSEMBLY RH	73360D	-	-	-
52	CENTER PILLAR LOWER GARNISH BELT HOLE COVER RH	73295A	-	-	-
53	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331C	-	-	-
54	REAR FLOOR FINISH PLATE	58387B	-	-	-

*A

for RH Side

-

-

Procedure		Part Name Code

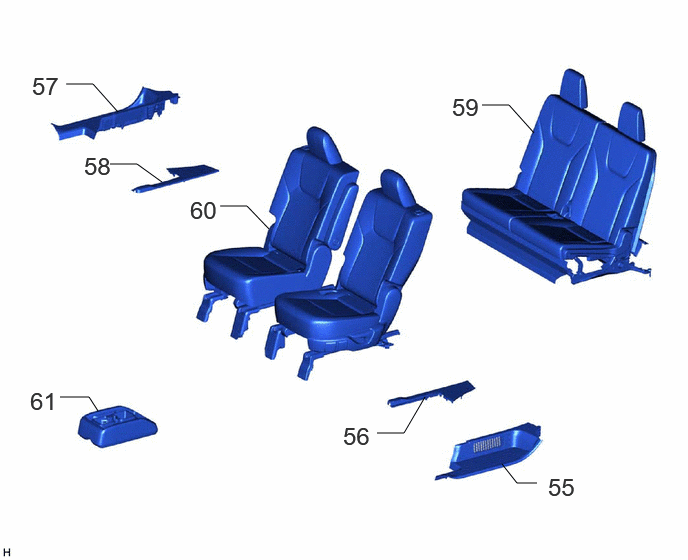

55	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
56	REAR OUTER SEAT TRACK BRACKET COVER LH	72138M	-	-	-
57	REAR DOOR SCUFF PLATE RH	67917A	-	-	-
58	REAR OUTER SEAT TRACK BRACKET COVER RH	72137S	-	-	-
59	REAR NO. 2 SEAT ASSEMBLY	-	-	-	-
60	REAR NO. 1 SEAT ASSEMBLY	-	-	-	-
61	REAR CONSOLE BOX ASSEMBLY	58910C	-	-	-

Procedure		Part Name Code

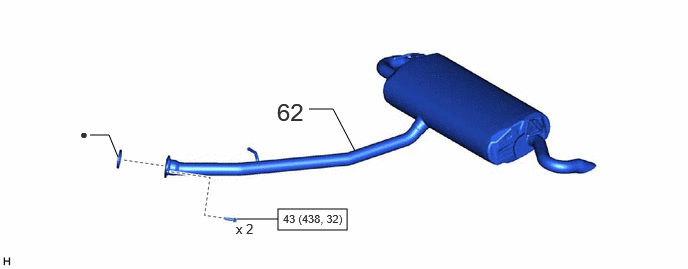

62	TAIL EXHAUST PIPE ASSEMBLY	17430	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

•

Non-reusable part

Procedure		Part Name Code
63	REAR BUMPER SIDE SEAL LH	52592	-	-	-
64	REAR BUMPER SIDE SEAL RH	52591	-	-	-

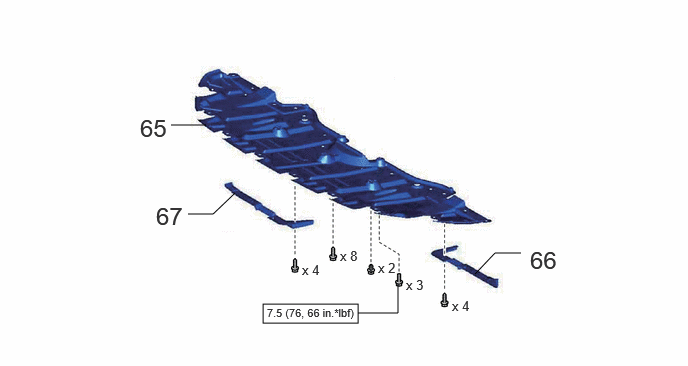

Procedure		Part Name Code
65	NO. 1 ENGINE UNDER COVER	51441	-	-	-
66	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
67	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

-

-

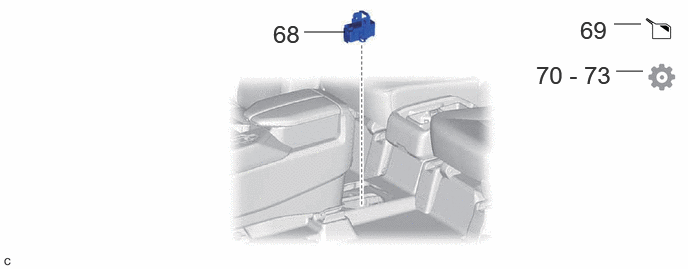

Procedure		Part Name Code
68	SERVICE PLUG GRIP	G3834	-	-	-
69	ADD COOLANT (for Inverter)	-	-	See step  69	-
70	INSPECT FOR COOLANT LEAK (for Inverter)	-	-	-	See step  70
71	INSPECT FOR EXHAUST GAS LEAK	-	-	-	See step  71
72	INSPECT AND ADJUST REAR WHEEL ALIGNMENT	-	-	-	See step  72
73	PERFORM INITIALIZATION	-	-	-	See step  73
