The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension member sub-assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear wheel alignment adjustment	Perform reset memory Perform "Calibration"	DTCs are stored ABS warning light illuminates Slip indicator light illuminates Electronically controlled brake system does not operate correctly	Refer to RESET MEMORY / CALIBRATION [09/2023 - ]
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [09/2023 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [09/2023 - ]
Suspension parts*3	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [09/2023 - ]
	w/ Automatic Headlight Beam Level Control System: Perform headlight ECU (headlight assembly LH) initialization	Lighting System (EXT)	Refer to INITIALIZATION [09/2023 - ]
w/ Automatic Headlight Beam Level Control System: Rear height control sensor sub-assembly LH	Perform headlight ECU sub-assembly LH initialization	Lighting system (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [09/2023 - ]
Gas leaks from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [09/2023 - ]

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: The vehicle height changes because of tire replacement.

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMPONENTS (REMOVAL)

Fig 1: Rear Suspension Member (For 2WD) Removal Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR BUMPER SIDE SEAL LH	52592	-	-	-
2	REAR BUMPER SIDE SEAL RH	52591	-	-	-

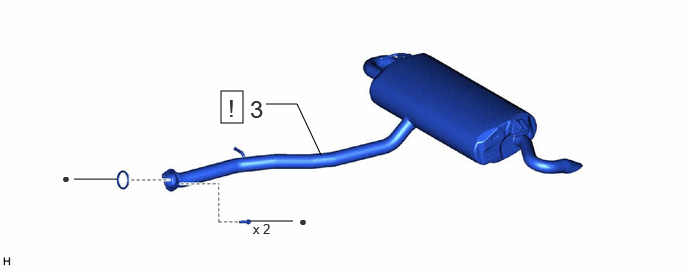

Fig 2: Rear Suspension Member (For 2WD) Removal Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	TAIL EXHAUST PIPE ASSEMBLY	17430	See step 3	-	-

•

Non-reusable part

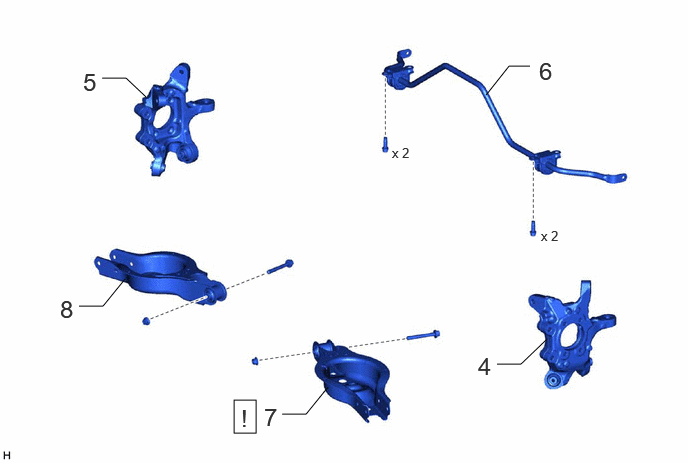

Fig 3: Rear Suspension Member (For 2WD) Removal Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
4	REAR AXLE CARRIER SUB-ASSEMBLY LH	42305	-	-	-
5	REAR AXLE CARRIER SUB-ASSEMBLY RH	42304	-	-	-
6	REAR STABILIZER BAR	48812	-	-	-
7	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	48740F	See step 7	-	-
8	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48730F	-	-	-

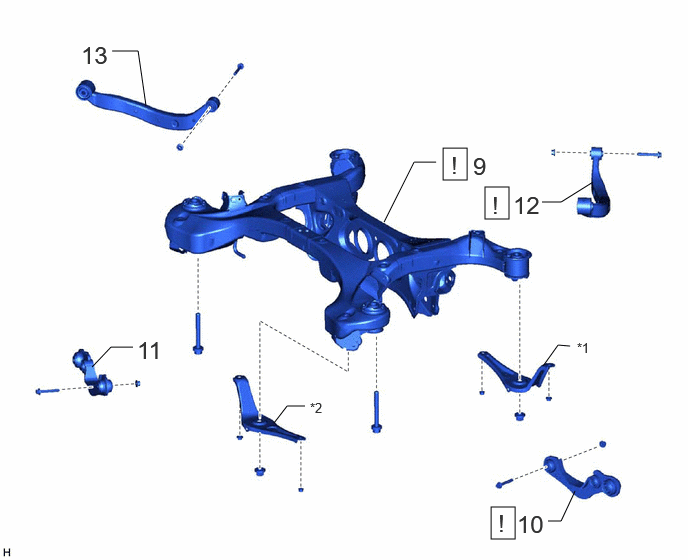

Fig 4: Rear Suspension Member (For 2WD) Removal Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
9	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	See step 9	-	-
10	REAR UPPER CONTROL ARM ASSEMBLY LH	48790	See step 10	-	-
11	REAR UPPER CONTROL ARM ASSEMBLY RH	48770A	-	-	-
12	REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH	48790F	See step 12	-	-
13	REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH	48790E	-	-	-

REAR SUSPENSION MEMBER REAR LOWER BRACE LH

REAR SUSPENSION MEMBER REAR LOWER BRACE RH

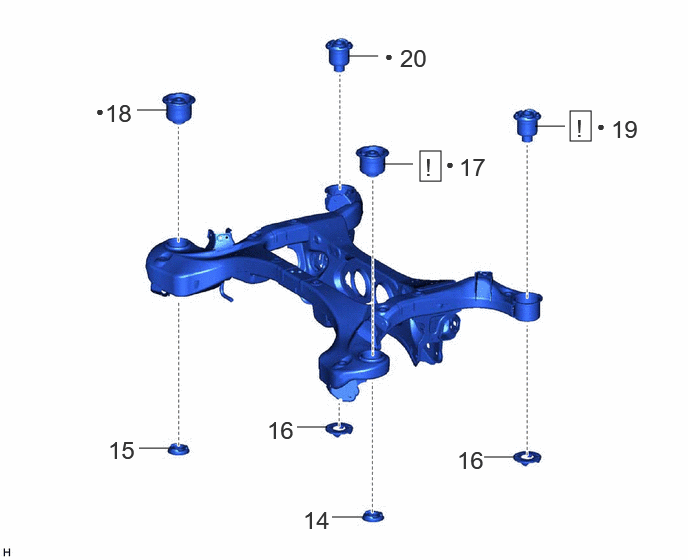

Fig 5: Rear Suspension Member (For 2WD) Removal Components (5 Of 6)

Procedure		Part Name Code
14	REAR SUSPENSION MEMBER LOWER STOPPER RETAINER LH	52278A	-	-	-
15	REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH	52277A	-	-	-
16	REAR SUSPENSION MEMBER REAR LOWER STOPPER	52278C	-	-	-
17	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH	52272A	See step 17	-	-
18	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH	52271E	-	-	-
19	REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH	52276A	See step 19	-	-
20	REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH	52275B	-	-	-

•

Non-reusable part

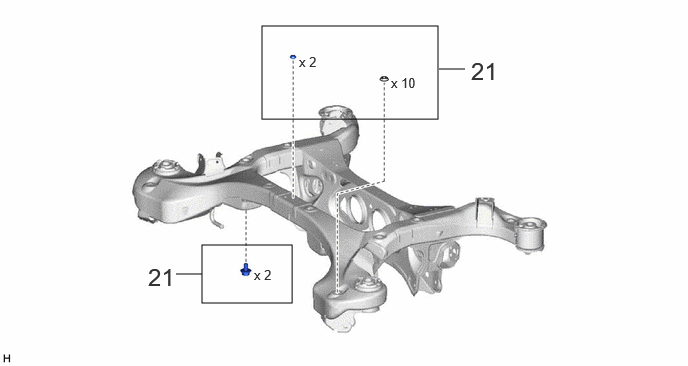

Fig 6: Rear Suspension Member (For 2WD) Removal Components (6 Of 6)

Procedure		Part Name Code
21	HOLE PLUG	-	-	-	-
