Caution / Notice / Hint

COMPONENTS (INSTALLATION)

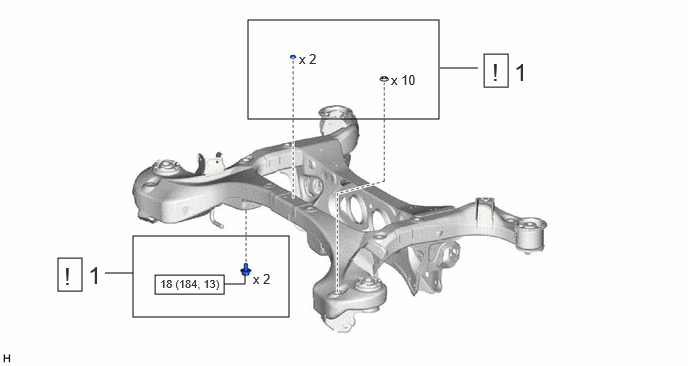

Fig 1: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications (1 Of 6)
GTY1235175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 HOLE PLUG - See step  1 - -
N.m (kgf/cm, ft.lbf): Specified torque - -

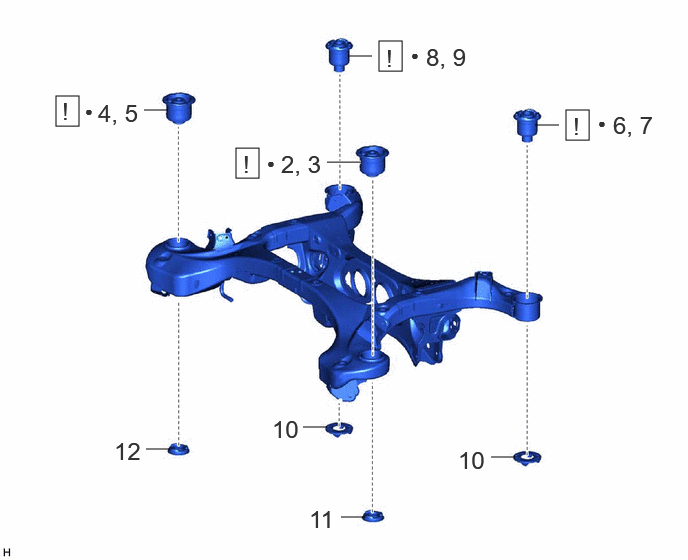

Fig 2: Rear Suspension Member (For 2WD) Installation Components (2 Of 6)
GTY1238584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
2 TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH 52272A See step  2 - -
3 INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH 52272A See step  3 - -
4 TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH 52271E See step  4 - -
5 INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH 52271E - - -
6 TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH 52276A See step  6 - -
7 INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH 52276A See step  7 - -
8 TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH 52275B See step  8 - -
9 INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH 52275B - - -
10 REAR LOWER REAR SUSPENSION MEMBER STOPPER 52278C - - -
11 REAR SUSPENSION MEMBER LOWER STOPPER RETAINER LH 52278A - - -
12 REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH 52277A - - -
• Non-reusable part - -

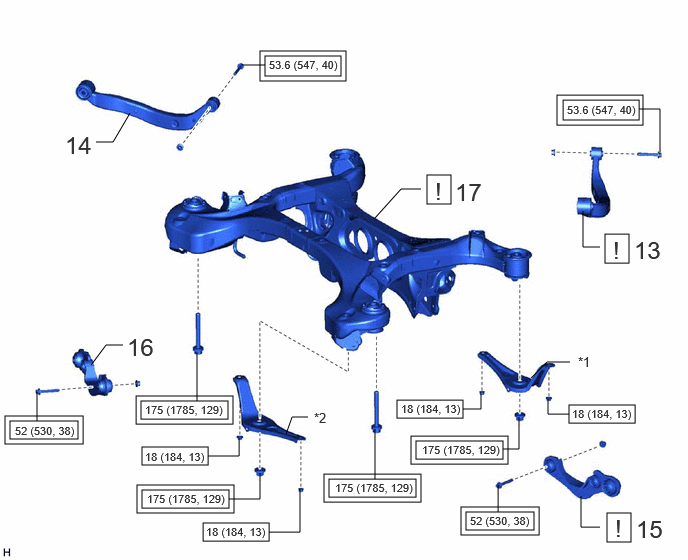

Fig 3: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications (3 Of 6)
GTY1234531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
13 REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH 48790F See step  13 - -
14 REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH 48790E - - -
15 INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  15 - -
16 INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
17 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  17 - -
*1 REAR SUSPENSION MEMBER REAR LOWER BRACE LH *2 REAR SUSPENSION MEMBER REAR LOWER BRACE RH
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

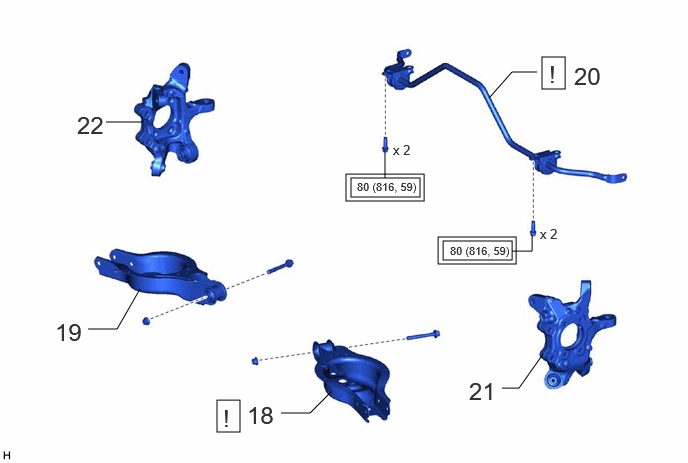

Fig 4: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications (4 Of 6)
GTY1233937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
18 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  18 - -
19 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
20 REAR STABILIZER BAR 48812 See step  20 - -
21 REAR AXLE CARRIER SUB-ASSEMBLY LH 42305 - - -
22 REAR AXLE CARRIER SUB-ASSEMBLY RH 42304 - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -

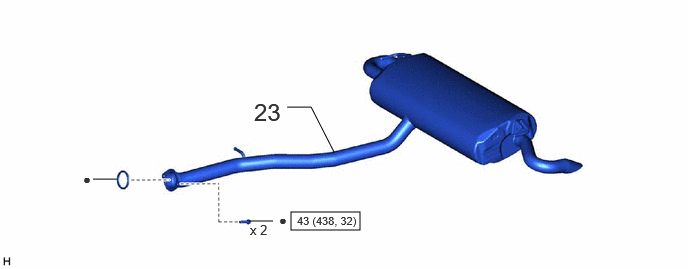

Fig 5: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications (5 Of 6)
GTY1239835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
23 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

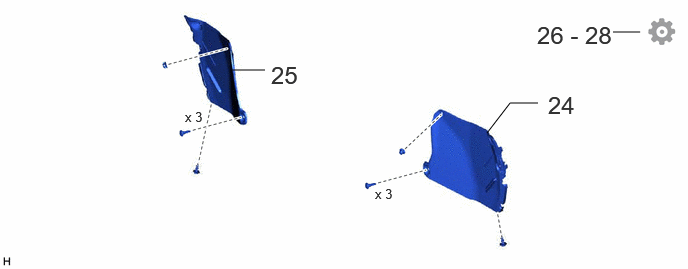

Fig 6: Rear Suspension Member (For 2WD) Installation Components (6 Of 6)
GTY1234508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
24 REAR BUMPER SIDE SEAL LH 52592 - - -
25 REAR BUMPER SIDE SEAL RH 52591 - - -
26 INSPECT FOR EXHAUST GAS LEAK - - - See step  26
27 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  27
28 PERFORM INITIALIZATION -   - See step  28
