Removal [09/2023 - 12/2023]: Procedure

REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
- for 1Motor-HEV Model: Refer to REMOVAL [09/2023 - ]
- for Gasoline Model AWD: Refer to REMOVAL [09/2023 - ]
- for 2WD: Refer to REMOVAL [09/2023 - ]

REMOVE REAR UPPER CONTROL ARM ASSEMBLY

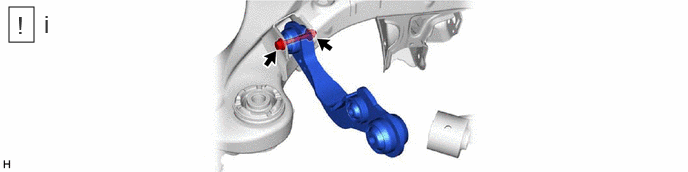

GTY1203065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt, nut and rear upper control arm assembly from the rear suspension member sub-assembly.
NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

REMOVE REAR UPPER NO. 2 CONTROL ARM ASSEMBLY

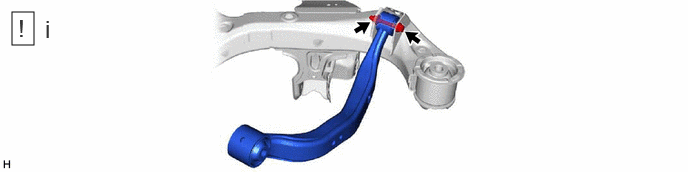

GTY1196299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt, nut and rear upper No. 2 control arm assembly from the rear suspension member sub-assembly.
NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
