Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

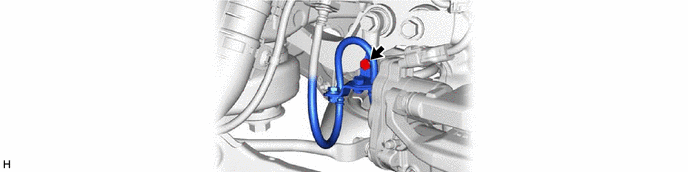

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the cap from the rear stabilizer link assembly LH.
   2. Remove the bolt, nuts and No. 1 rear suspension arm washer, and then remove the rear stabilizer link assembly LH from the rear upper control arm assembly LH and rear stabilizer bar.

      HINT:

      If the stud bolt turns together with the nut, hold the stud bolt using a socket hexagon wrench (6 mm).

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
