Removal [09/2023 - ]: Procedure

  1. REMOVE REAR COIL SPRING

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  8

  3. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY
    1. GTY1198099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, nut and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  4. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

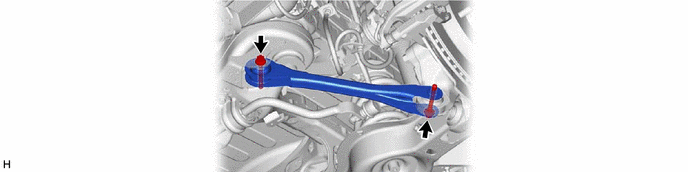

    1. GTY1239963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
