Removal [09/2023 - 12/2023]: Procedure
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
for T24A-FTS 1Motor-HEV Model: Refer to REMOVAL [09/2023 - ]
for T24A-FTS Gasoline Model: Refer to REMOVAL [09/2023 - ]

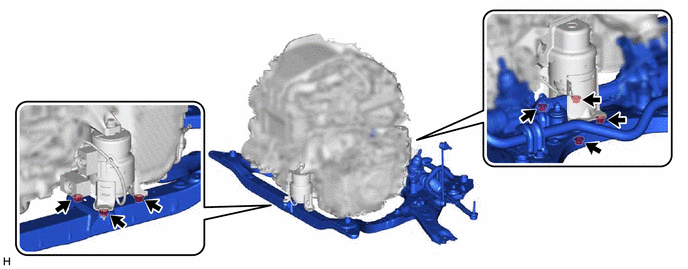

- REMOVE ENGINE MOUNTING BRACKET CAP
for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 45
for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 54 - INSTALL ENGINE HANGERS
for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 46
for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 55 - REMOVE STEERING GEAR HEAT INSULATOR
Refer to PROCEDURE - Step 11
- DISCONNECT WIRE HARNESS
Refer to PROCEDURE - Step 12 - REMOVE FRONT FRAME ASSEMBLY
- REMOVE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
Refer to PROCEDURE - Step 14
- REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY
Refer to PROCEDURE - Step 15 - REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
- REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
- Perform the same procedure as for the LH side.
- REMOVE FRONT LOWER ARM BUSHING STOPPER (for LH Side)
See step 11
- REMOVE FRONT LOWER ARM BUSHING STOPPER (for RH Side)
- Perform the same procedure as for the LH side.
- REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET
