Installation [09/2023 - 12/2023]: Procedure
- INSTALL NO. 2 EXHAUST PIPE SUPPORT BRACKET
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- INSTALL FRONT LOWER ARM BUSHING STOPPER (for LH Side)
- INSTALL FRONT LOWER ARM BUSHING STOPPER (for RH Side)
- INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

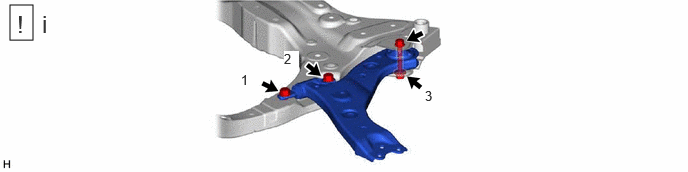

- Install the front lower No. 1 suspension arm sub-assembly LH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.
Bolt (1), (2)
Torque: 206 N.m (2101 kgf/cm, 152 ft.lbf)
Bolt (3)
Torque: 139 N.m (1417 kgf/cm, 103 ft.lbf)
NOTE:Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Install the front lower No. 1 suspension arm sub-assembly LH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.
-
- INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
- INSTALL RACK AND PINION POWER STEERING GEAR ASSEMBLY
Refer to PROCEDURE - Step 3 - INSTALL FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
Refer to PROCEDURE - Step 4 - INSTALL FRONT FRAME ASSEMBLY
Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)
- CONNECT WIRE HARNESS
Refer to PROCEDURE - Step 6 - INSTALL STEERING GEAR HEAT INSULATOR
Refer to PROCEDURE - Step 7 - INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 36
for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 33
