Installation [09/2023 - 12/2023]: Procedure

INSTALL REAR NO. 2 SEAT OUTER BELT ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

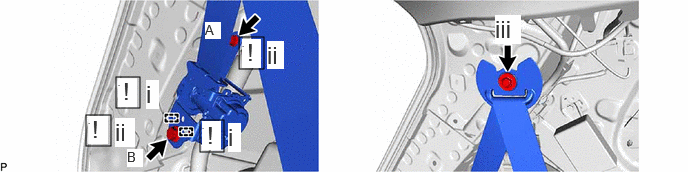

Engage the 2 guides to temporarily install the rear No. 2 seat outer belt assembly with the 2 bolts.
Fully tighten the bolt (A) first, then the bolt (B).
Bolt (A)

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

Bolt (B)

Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)
Connect the shoulder anchor of the rear No. 2 seat outer belt assembly with the bolt.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

INSTALL REAR WINDOW SIDE GARNISH
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
INSTALL ROPE HOOK ASSEMBLY
INSTALL ROPE HOOK
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
INSTALL DECK TRIM POCKET COVER
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)
INSTALL DECK SIDE TRIM COVER
CONNECT REAR SEAT OUTER BELT ASSEMBLY LH
See step 11
INSTALL CENTER PILLAR LOWER GARNISH BELT HOLE COVER
CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
INSTALL REAR DOOR SCUFF PLATE
INSTALL REAR OUTER SEAT TRACK BRACKET COVER
INSTALL REAR FLOOR FINISH PLATE
INSTALL REAR NO. 2 SEAT ASSEMBLY
Refer to INSTALLATION [09/2023 - 12/2023]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
1. for Gasoline Model:
  Refer to PROCEDURE - Step 5
2. except Gasoline Model:
  Refer to PROCEDURE - Step 6
INSTALL BATTERY SERVICE HOLE COVER (except Gasoline Model)
INSTALL DECK BOARD ASSEMBLY (except Gasoline Model)
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [09/2023 - 12/2023]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [09/2023 - ]
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [09/2023 - ]
INSPECT SEAT BELT WARNING SYSTEM
Refer to OPERATION CHECK [09/2023 - ]
