Section 3 (Dynamic Torque Control AWD System - Diagnostic Codes & Symptom Tests)
>>
Dynamic Torque Control AWD System
>>
TRAIL Switch Circuit [09/2023 - ]
>>
Wiring Diagram

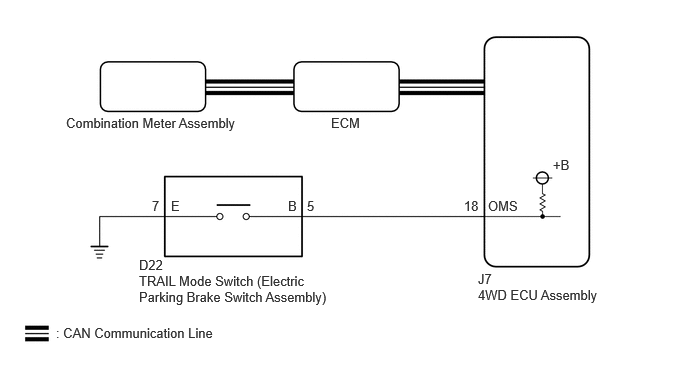

TRAIL Switch Circuit [09/2023 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
