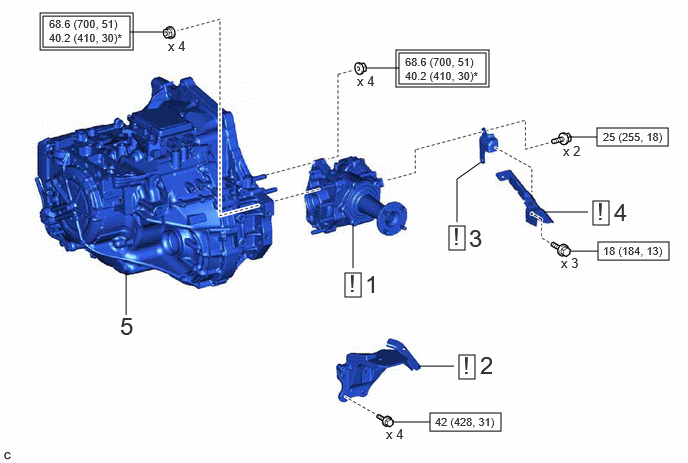

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TRANSFER ASSEMBLY | 36100 | See step 1 | - | - |
| 2 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | 12321A | See step 2 | - | - |
| 3 | PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY | 37109A | See step 3 | - | - |
| 4 | PROPELLER SHAFT HEAT INSULATOR | 37117B | See step 4 | - | - |
| 5 | AUTOMATIC TRANSAXLE ASSEMBLY | 30500 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with SST and a union nut wrench | - | - |
