Parts Location [09/2023 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

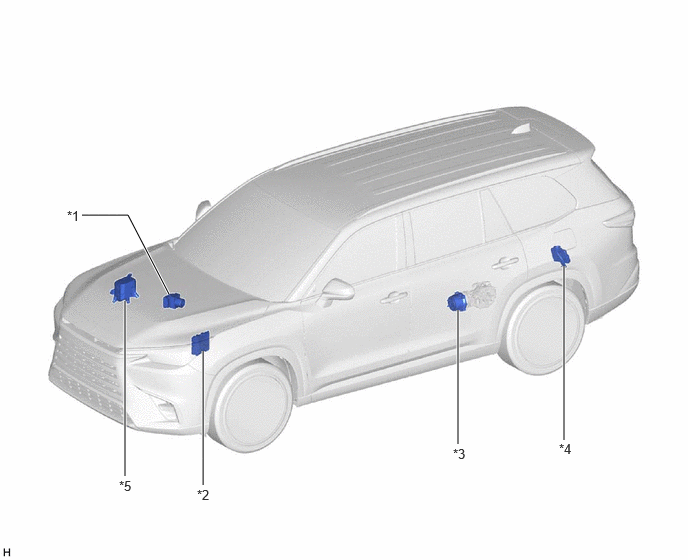

Fig 1: Dynamic Torque Control Awd System Replacement Components (1 Of 2) [09/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*2	ECM
*3	4WD LINEAR SOLENOID (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY)	*4	4WD ECU ASSEMBLY
*5	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - 4WD FUSE	-	-

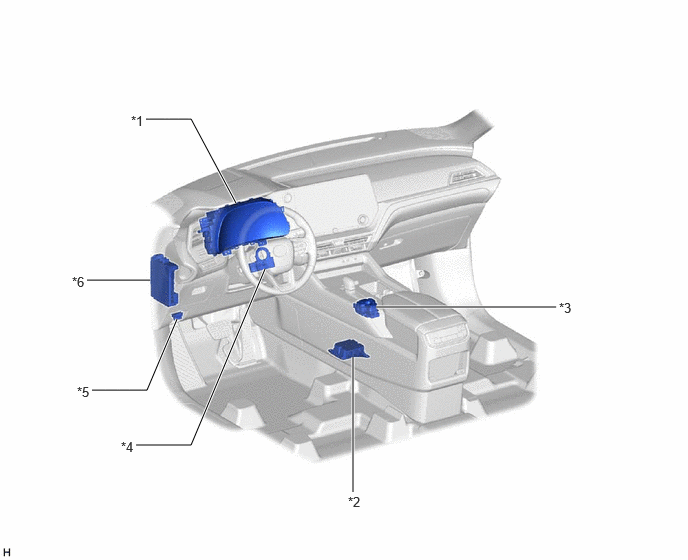

Fig 1: Dynamic Torque Control Awd System Replacement Components (2 Of 2) [09/2023 - ]

*1	COMBINATION METER ASSEMBLY - AWD WARNING MESSAGE (MULTI-INFORMATION DISPLAY) - TRAIL INDICATOR	*2	AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR
*3	TRAIL MODE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)	*4	STEERING SENSOR
*5	DLC3	*6	POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 4 FUSE
