Reassembly [12/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL OIL PUMP ROTOR SET
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Coat the drive rotor and driven rotor with engine oil and place them into the timing chain cover assembly with the rotor marks facing up. Check that the rotors rotate smoothly.

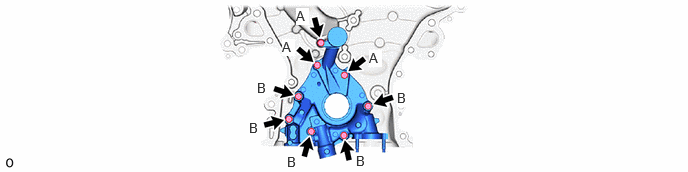

- INSTALL OIL PUMP COVER
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)
Bolt Length
| Item |
Length |
| Bolt (A) |
22 mm (0.866 in.) |
| Bolt (B) |
40 mm (1.57 in.) |
- INSTALL OIL PUMP RELIEF VALVE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Coat the oil pump relief valve with engine oil.
- Insert the oil pump relief valve and oil pump relief valve spring into the oil pump cover hole.
- Using a 27 mm socket wrench, install the oil pump relief valve plug to the oil pump cover.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
