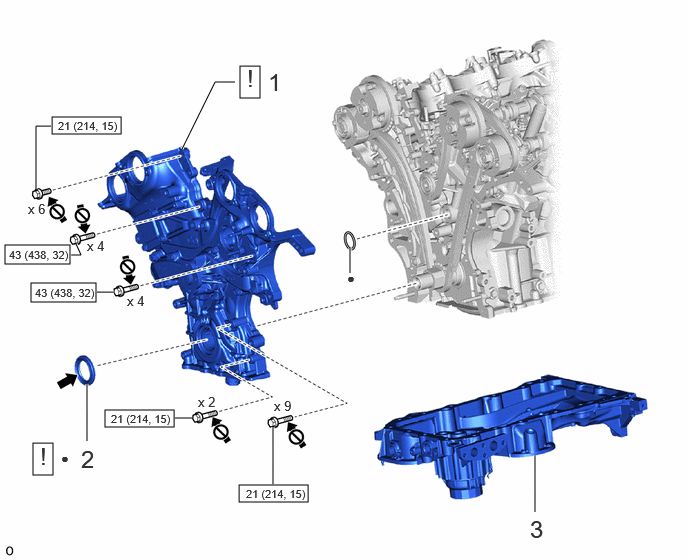

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TIMING CHAIN COVER ASSEMBLY | 11310 | See step 1 | - | - |
| 2 | TIMING CHAIN CASE OIL SEAL | 11301C | See step 2 | - | - |
| 3 | OIL PAN SUB-ASSEMBLY | 12101 | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP Grease | Do not apply lubricants to the threaded parts |
