Disassembly [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

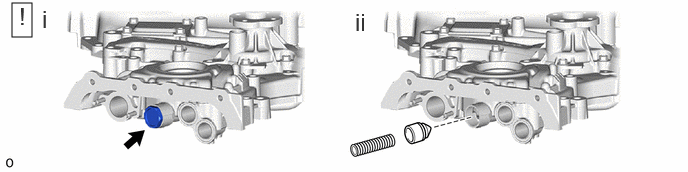

  1. REMOVE OIL PUMP RELIEF VALVE
    1. GTY1240400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 27 mm socket wrench, remove the oil pump relief valve plug from the oil pump cover.
      2. Remove the oil pump relief valve spring and oil pump relief valve from the valve hole.

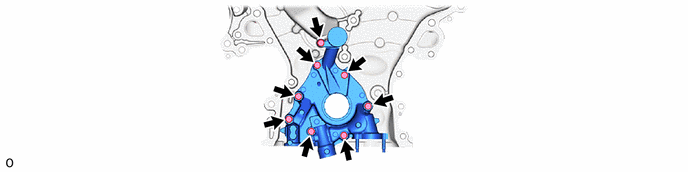

  2. REMOVE OIL PUMP COVER
    1. GTY1240278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

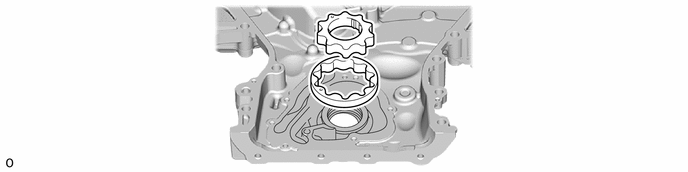

  3. REMOVE OIL PUMP ROTOR SET
    1. GTY1233568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
