Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

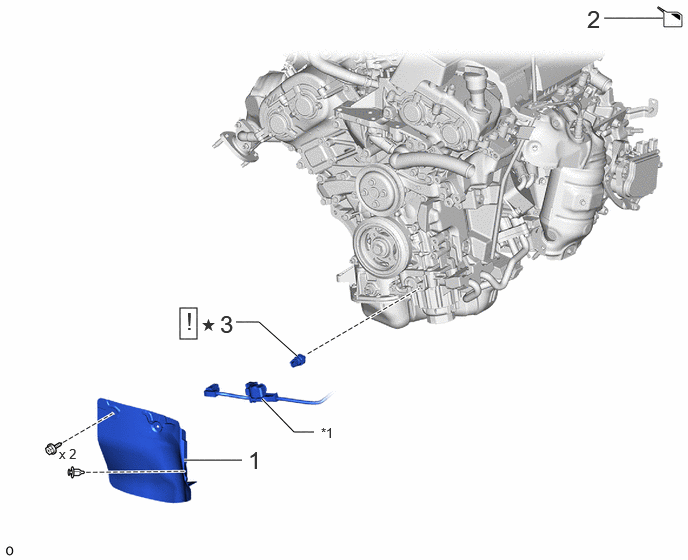

Fig 1: Oil Pressure Switch Removal Components

Procedure		Part Name Code
1	FRONT FENDER APRON SEAL RH	53736	-	-	-
2	DRAIN ENGINE OIL	-	-	See step 2	-
3	ENGINE OIL PRESSURE SWITCH ASSEMBLY	83530	See step 3	-	-

*1	WIRE HARNESS PROTECTOR	-	-
*	Precoated part	-	-
