COMPONENTS (INSTALLATION)

Fig 1: Oil Pan And Oil Level Sensor Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	ENGINE OIL LEVEL SENSOR	89491	See step 1	-	-
2	OIL STRAINER SUB-ASSEMBLY	15104	See step 2	-	-
3	NO. 2 OIL PAN SUB-ASSEMBLY	12102A	See step 3	-	-

*1	OIL STRAINER GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

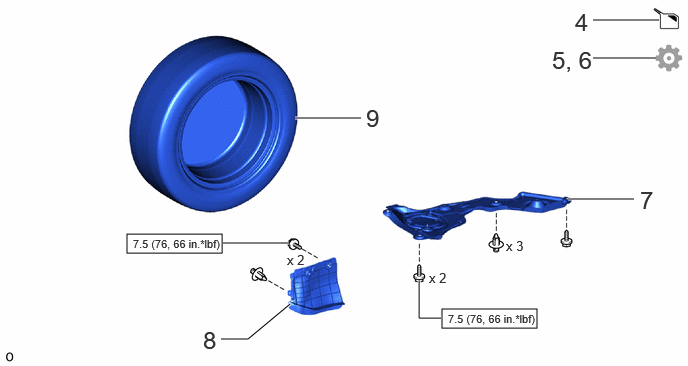

Fig 2: Oil Pan And Oil Level Sensor Installation Components With Torque Specifications (2 Of 2)

Procedure		Part Name Code
4	ADD ENGINE OIL	-	-	See step 4	-
5	CHECK ENGINE OIL LEVEL	-	-	-	See step 6
6	INSPECT FOR OIL LEAK	-	-	-	See step 5
7	REAR ENGINE UNDER COVER RH	-	-	-	-
8	FRONT FENDER APRON SEAL RH	53736	-	-	-
9	FRONT WHEEL RH	-	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque
