Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (INSTALLATION)

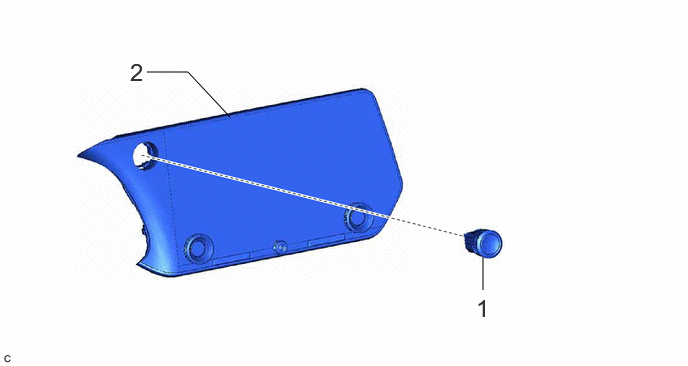

Fig 1: Power Switch Installation Components
GTY1228794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 POWER SWITCH 89611 - - -
2 RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET - - - -
