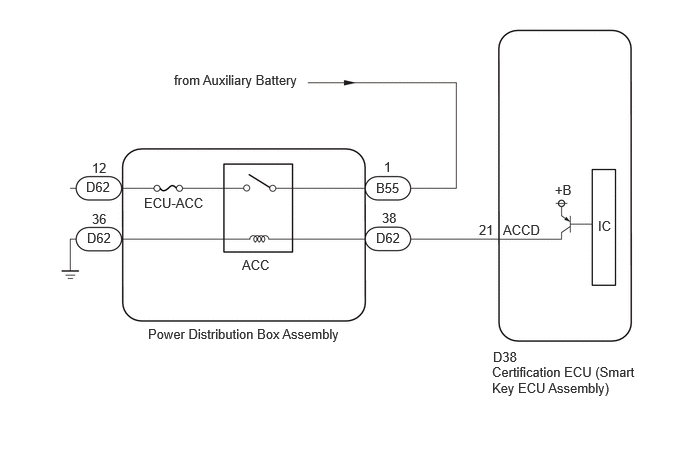

DTC B2274-11: ACC Circuit Short to Ground [09/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
GTY1229525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
