Section 95 (Battery / Charging System (T24A-FTS) - Diagnostics - Introduction)
>>
CHARGING SYSTEM (for 1Motor-HEV Model)
>>
System Diagram [09/2023 - ]
>>
System Diagram [09/2023 - ]
System Diagram [09/2023 - ]
WARNING:
This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

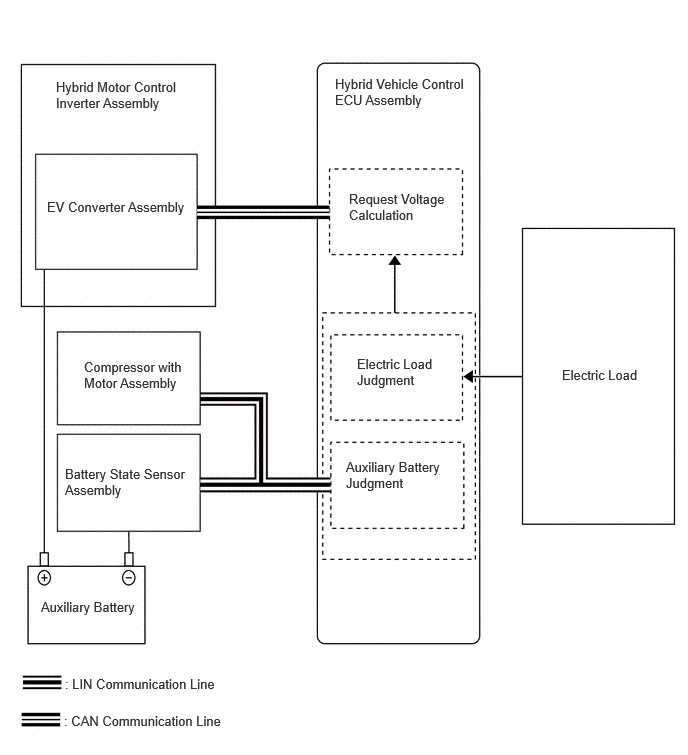

Fig 1: Charging System Diagram (For 1Motor-Hev Model)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
