VC Output Circuit [09/2023 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM

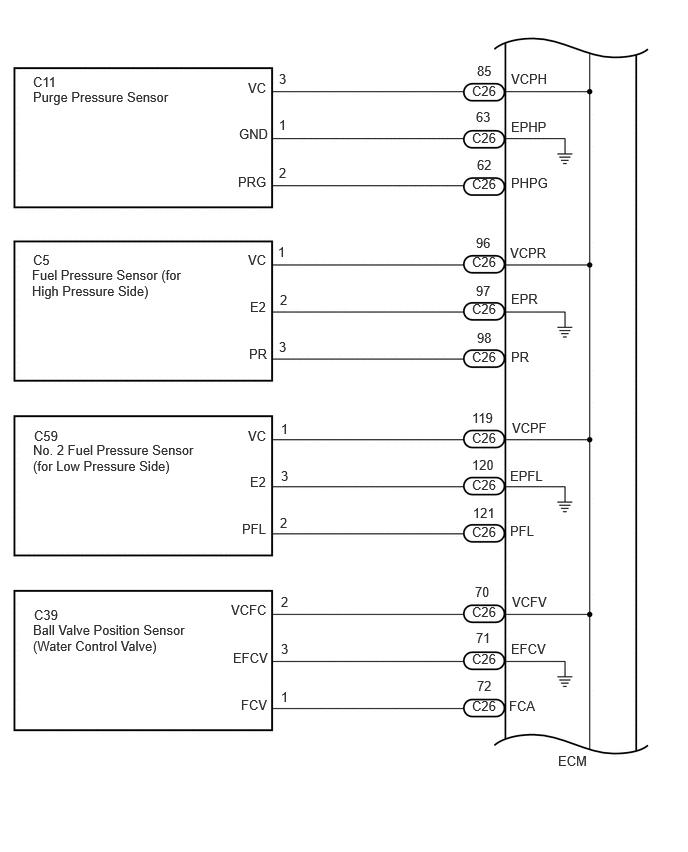

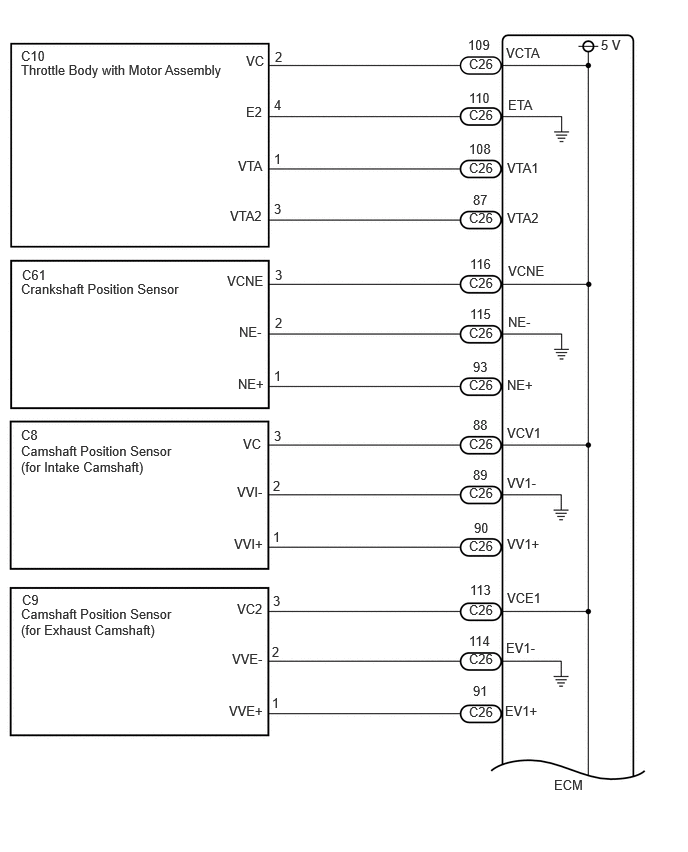

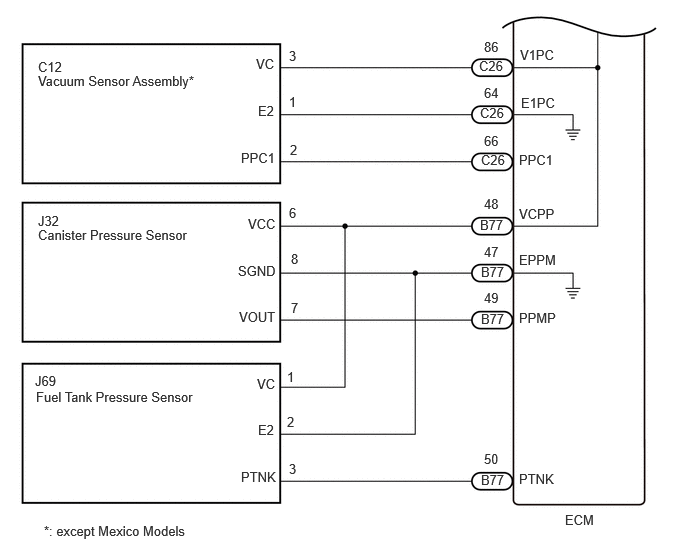

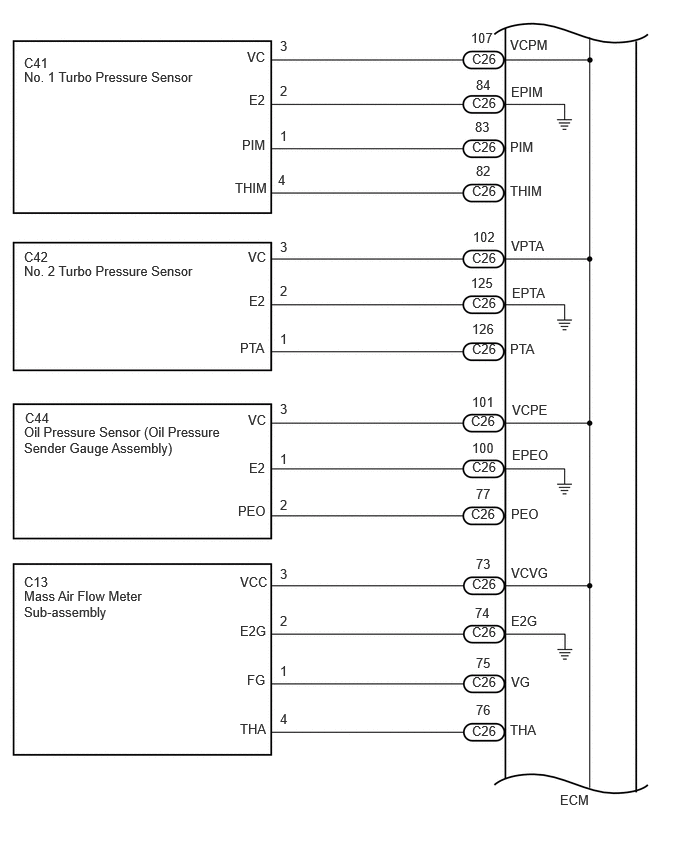

- VC Output Circuit
