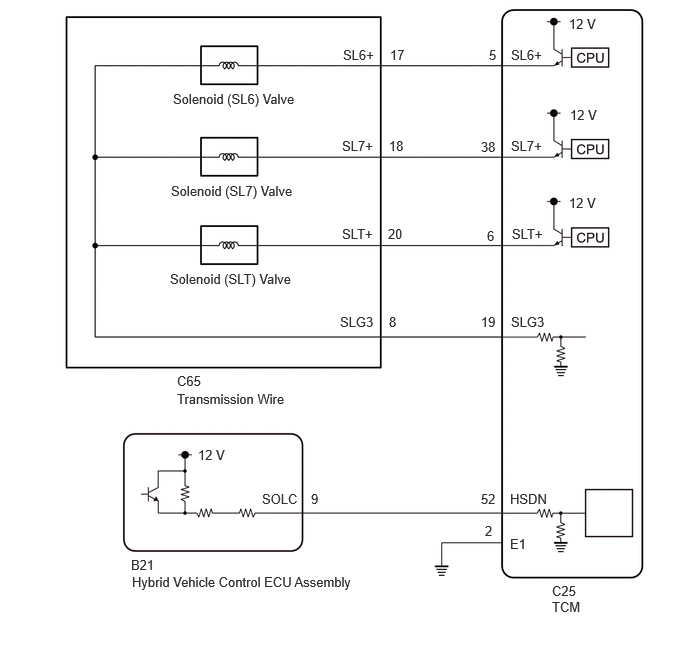

DTC P08BF-13: Pressure Control Solenoid "L" Control Circuit Open [09/2023 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
Refer to TCM Power Source Circuit.
Refer to WIRING DIAGRAM
Refer to ECU Power Source Circuit (hybrid control system).
Refer to WIRING DIAGRAM
