System Description
WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
The hybrid motor control inverter converts the high-voltage direct current of the HV battery into alternating current for the motor.
Therefore, the hybrid motor control inverter is cooled by the water-cooled type cooling system that cools the EV converter assembly (DC/DC converter), EV motor control inverter assembly, rear transaxle motor cooling cooler, turbocharger sub-assembly and intercooler assembly.
The ECM controls the inverter water pump assembly (with motor) based on the flow rate requested by the hybrid vehicle control ECU assembly.

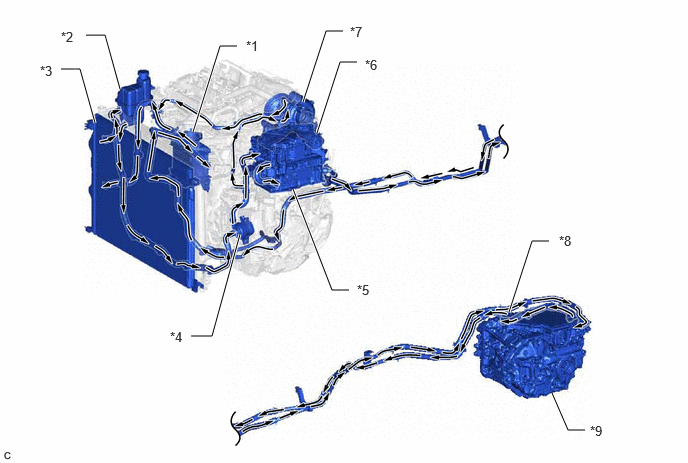

| *1 | Intercooler Assembly | *2 | Intercooler Reserve Tank Assembly |
| *3 | Intercooler Cooling Radiator Assembly | *4 | Inverter Water Pump Assembly (with Motor) |
| *5 | Hybrid Motor Control Inverter Assembly | *6 | EV Converter Assembly (DC/DC Converter) |
| *7 | Turbocharger Sub-assembly | *8 | Rear Transaxle Motor Cooling Cooler |
| *9 | Rear Transaxle with Motor and Inverter Assembly
|
- | - |
| Inverter Coolant Flow | - | - |
