DTC P19E1-00: DC/DC Converter System Performance [09/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the wiring diagram for DTC P0AA6-49.

Refer to WIRING DIAGRAM

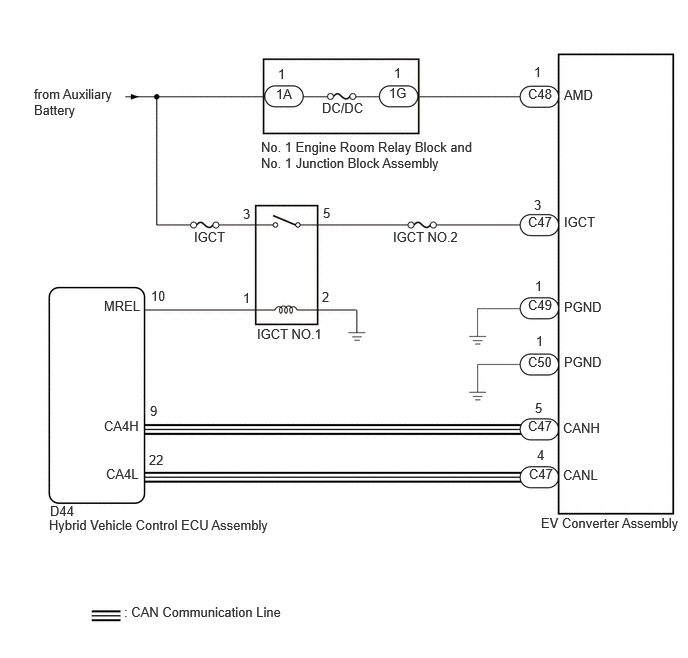

GTY1233716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
