DTC P190F-9F: Forced Hybrid/EV System Shutdown Performance Stuck Off [09/2023 - ]: Procedure

Pre-procedure1

• None.

• Check for DTCs.

  Powertrain > Hybrid Control > Trouble Codes

  Result

  Result	Proceed to
  P190F-9F is output	A
  P190F-9F and other DTCs are output	B

Post-procedure1

• Turn the ignition switch off.

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2023 - ]

Result:

A

See step  2

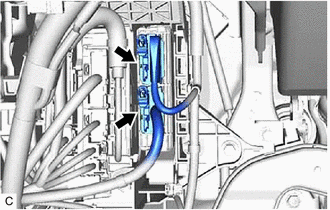

1. Check the connection condition of the hybrid vehicle control ECU assembly connector and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

   HINT:

   Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [09/2023 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   - The connector is connected securely.

   - The terminals are not deformed and are connected securely.

   - No water or foreign matter in the connector.

   Result

   Result	Proceed to
   OK	A
   NG (The connector is not connected securely.)	B
   NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)	C

Result:

B

CONNECT SECURELY

Result:

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

A

See step  3

1. Check the connection condition of the TCM connector and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

   HINT:

   Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [09/2023 - ]

   OK

   - The connector is connected securely.

   - The terminals are not deformed and are connected securely.

   - No water or foreign matter in the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   Result	Proceed to
   OK	A
   NG (The connector is not connected securely.)	B
   NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)	C

Result:

B

CONNECT SECURELY

Result:

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

A

See step  4

Pre-procedure1

• Check that the service plug grip is not installed.
  NOTE:

  After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the service information because this may cause a malfunction.

• Disconnect the TCM connector.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• Disconnect the hybrid vehicle control ECU assembly connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  B21-9 (SOLC) - C25-52 (HSDN)	Ignition switch off	Below 1 Ω	Ω
  B21-9 (SOLC) or C25-52 (HSDN) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reconnect the hybrid vehicle control ECU assembly connector.
• Reconnect TCM connector.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

Pre-procedure1

• Check that the service plug grip is not installed.
  NOTE:

  After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the service information because this may cause a malfunction.

• Disconnect the TCM connector.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  C25-52 (HSDN) - C25-8 (DRN)	Ignition switch off	10 kΩ or higher	kΩ

  NOTE:

  Be sure not to damage or deform the terminal being inspected.

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reconnect the TCM connector.

Result:

OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [09/2023 - 12/2023]  , or refer to  REMOVAL [12/2023 - ]

Result:

NG

REPLACE TCM. Refer to  REMOVAL [09/2023 - ]
