Removal [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SUSPENSION TOWER DAMPER

    Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  2. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 11

  4. DRAIN HYBRID TRANSAXLE FLUID
    1. GTY1198098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Overflow Plug *2 Gasket
      *3 No. 1 Transmission Oil Filler Tube - -
      1. Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle assembly with motor and inverter.
      2. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle assembly with motor and inverter and drain the hybrid transaxle fluid.
      3. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the transaxle assembly with motor and inverter.

        Torque: 0.8 N.m (8 kgf/cm, 7 in.lbf)

      4. Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle assembly with motor and inverter.

        HINT:

        Gasket replacement and tightening of the overflow plug are performed after the hybrid transaxle fluid level is adjusted.

  5. REMOVE MOTOR COOLING COOLER

    Refer to REMOVAL [09/2023 - ]

  6. REMOVE INVERTER WATER PUMP ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  7. DISCONNECT ENGINE WIRE
    1. GTY1200492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HV WATER PUMP BRACKET

    See step  15

  9. REMOVE NO. 1 TRANSMISSION OIL COOLER BRACKET
    1. GTY1128012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts and No. 1 transmission oil cooler bracket from the transaxle assembly with motor and inverter.
      2. Using a T40 "TORX" socket wrench, remove the 2 plugs and 2 O-rings from the No. 1 transmission oil cooler bracket.
      3. Remove the 2 O-rings from the No. 1 transmission oil cooler bracket.
  10. REMOVE AUTOMATIC TRANSMISSION CASE COVER
    1. GTY1124124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

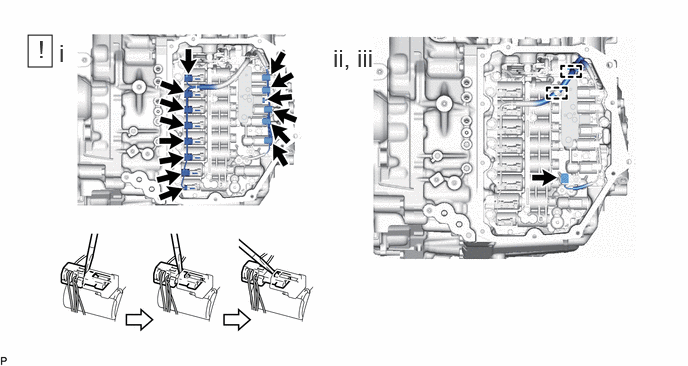

    1. GTY1123799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, disconnect the 14 solenoid valve connectors of each of the solenoid valves as shown in the illustration.
        NOTE:

        Do not damage the solenoid valves or solenoid valve connectors.

      2. Disconnect the temperature sensor connector.
      3. Disengage the 2 clamps.
    2. GTY1122560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Gasket and Oil Seal Ring
      Gasket - -
      1. Remove the 10 bolts and transmission valve body assembly from the automatic transaxle case sub-assembly.
      2. Remove the 5 gaskets and 2 oil seal rings from the automatic transaxle case sub-assembly.
