Removal [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE NO. 2 TRANSMISSION REVOLUTION SENSOR

    See step  2

  3. REMOVE TRANSMISSION REVOLUTION SENSOR

    See step  3

  4. REMOVE TRANSMISSION WIRE

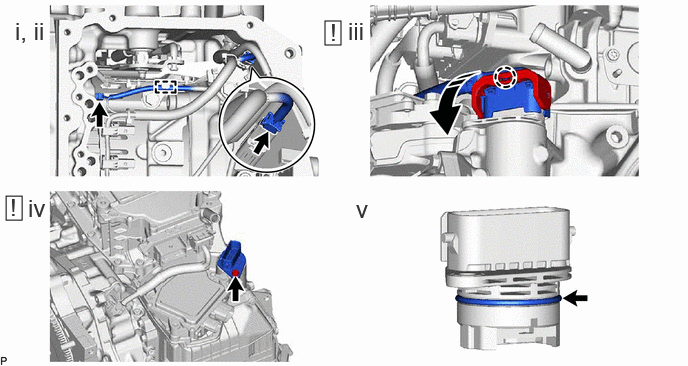

    1. GTY1196446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull Down the Lever - -
      1. Disconnect the 2 transmission wire connectors.
      2. Disengage the clamp.
      3. Disconnect the transmission wire connector.

        HINT:

        Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      4. Remove the bolt and pull out the transmission wire from the transaxle assembly with motor and inverter.
      5. Remove the O-ring from the transmission wire.
