COMPONENTS (REMOVAL)

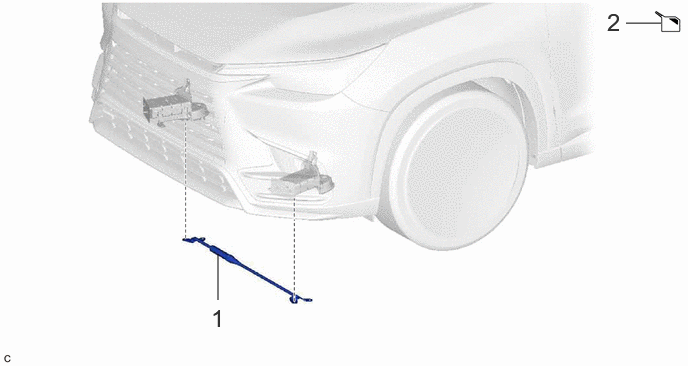

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SUSPENSION TOWER DAMPER | 48691K | - | - | - |
| 2 | DRAIN ENGINE COOLANT (for Engine) | - | - | See step 2 | - |

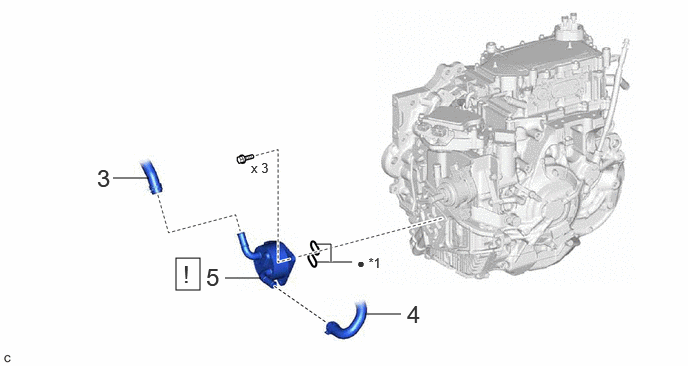

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | NO. 4 WATER BY-PASS HOSE | 16281N | - | - | - |
| 4 | WATER BY-PASS HOSE ASSEMBLY | 16260 | - | - | - |
| 5 | MOTOR COOLING COOLER | G125AA | See step 5 | - | - |
| *1 | O-RING | - | - |
| • | Non-reusable part | - | - |
