Installation [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MOTOR COOLING COOLER

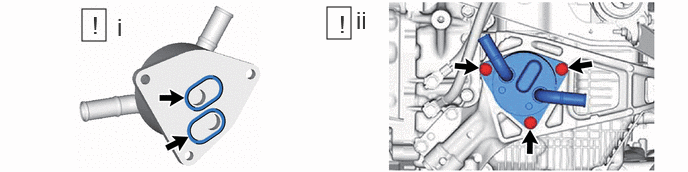

    1. GTY1128302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat 2 new O-rings with Toyota Genuine ATF WS and install them to the motor cooling cooler.
      2. Using a T40 "TORX" socket wrench, install the motor cooling cooler with the 3 bolts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  2. CONNECT WATER BY-PASS HOSE ASSEMBLY

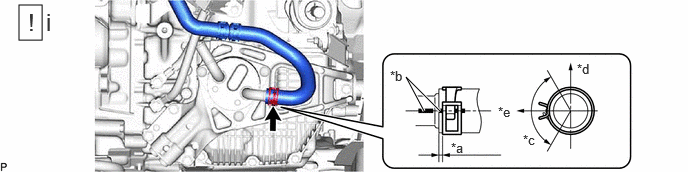

    1. GTY1126696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark (Front Side of Vehicle)
      *c 120° (Claw of Clip Location) *d Upper Side of Vehicle
      *e Front Side of Vehicle - -
      1. Connect the water by-pass hose assembly to the motor cooling cooler and slide the clip to secure it.
        NOTE:
        • Make sure to slide the water by-pass hose assembly until it contacts the hose stopper of the motor cooling cooler.
        • Make sure to align the paint mark of the water by-pass hose assembly with the paint mark of the motor cooling cooler.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  3. CONNECT NO. 4 WATER BY-PASS HOSE

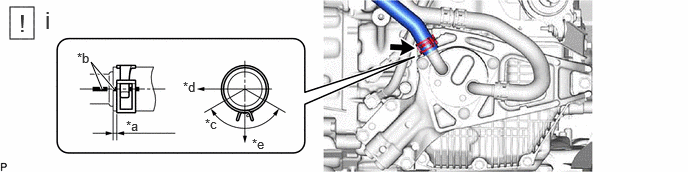

    1. GTY1128657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark (Front Side of Vehicle)
      *c 120° (Claw of Clip Location) *d RH Side of Vehicle
      *e Front Side of Vehicle - -
      1. Connect the No. 4 water by-pass hose to the motor cooling cooler and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 4 water by-pass hose until it contacts the hose stopper of the motor cooling cooler.
        • Make sure to align the paint mark of the No. 4 water by-pass hose with the paint mark of the motor cooling cooler.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  4. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 6

  5. ADJUST HYBRID TRANSAXLE FLUID

    Refer to ADJUSTMENT [09/2023 - ]

  6. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  7. INSTALL SUSPENSION TOWER DAMPER

    Refer to INSTALLATION [09/2023 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
