Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

When replacing parts, perform procedures according to the following table.

Part Replaced or Procedure Performed Before replacement After replacement
Read the resolver compensation value
Refer to UTILITY [09/2023 - ]
Check the resolver compensation value directly underneath the QR code
Refer to UTILITY [09/2023 - ]
ECU Configuration
Refer to ECU CONFIGURATION [09/2023 - ]
Write the resolver compensation value
Refer to UTILITY [09/2023 - ]
Hybrid motor control inverter assembly *
EV motor control inverter assembly *
Transaxle assembly with motor -
Rear transaxle with motor assembly -
Transaxle assembly with motor and inverter - - -
Rear transaxle with motor and inverter assembly - - -

*: Perform this step if it was not possible to read the resolver compensation value before replacement.◦: Necessary-: Not necessary



COMPONENTS (INSTALLATION)

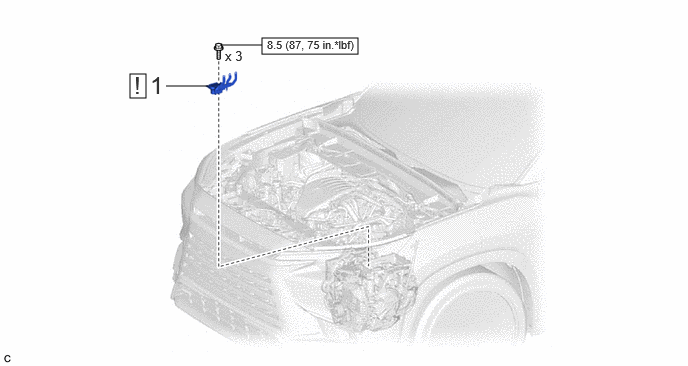

Fig 1: Inverter Installation Components With Torque Specifications (1 Of 3)
GTY1241011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 INSTALL NO. 1 INVERTER BUSBAR PLATE - See step  1 - -
N.m (kgf/cm, ft.lbf): Specified torque - -

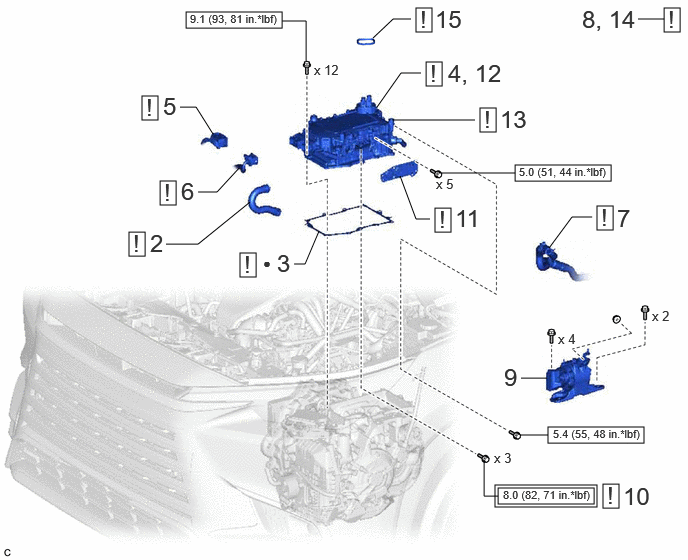

Fig 2: Inverter Installation Components With Torque Specifications (2 Of 3)
GTY1240481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
2 INLET NO. 1 INVERTER COOLING HOSE G922A See step  2 - -
3 INVERTER CASE GASKET - See step  3 - -
4 TEMPORARILY INSTALL HYBRID MOTOR CONTROL INVERTER ASSEMBLY G92A0 See step  4 - -
5 ENGINE WIRE 82121 See step  5 - -
6 RESOLVER THERMISTOR WIRE - See step  6 - -
7 NO. 4 INVERTER COOLING HOSE G9228A See step  7 - -
8 SUPPORT ENGINE WITH TRANSAXLE ASSEMBLY WITH MOTOR AND INVERTER - See step  8 - -
9 REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY LH 12306 - - -
10 CONNECT NO. 1 INVERTER BUSBAR PLATE - See step  10 - -
11 UPPER INVERTER COVER G9221G See step  11 - -
12 FULLY TIGHTEN HYBRID MOTOR CONTROL INVERTER ASSEMBLY G92A0 See step  12 - -
13 BREATHER HOSE - See step  13 - -
14 LIFT DOWN - See step  14 - -
15 O-RING - See step  15 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Non-reusable part - -

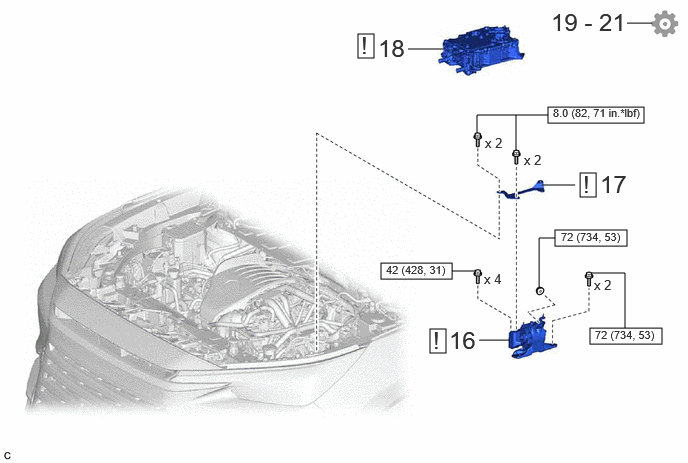

Fig 3: Inverter Installation Components With Torque Specifications (3 Of 3)
GTY1229624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
16 INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY LH 12306 See step  16 - -
17 ENGINE MOUNTING STAY LH 12318 See step  17 - -
18 EV CONVERTER ASSEMBLY G9200 See step  18 - -
19 ECU CONFIGURATION - - - See step  19
20 PERFORM RESOLVER INITIALIZATION - - - See step  20
21 PERFORM INITIALIZATION - - - See step  21
N.m (kgf/cm, ft.lbf): Specified torque - -
