The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hybrid motor control inverter assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [09/2023 - ]
Replacement of hybrid motor control inverter assembly	Resolver learning	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [09/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [09/2023 - ]

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [09/2023 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

Fig 1: Inverter With Converter (For PHEV Model) Removal Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	SERVICE PLUG GRIP	G3834	-	-	-
3	COOLANT (for Inverter)	-	-	-	-

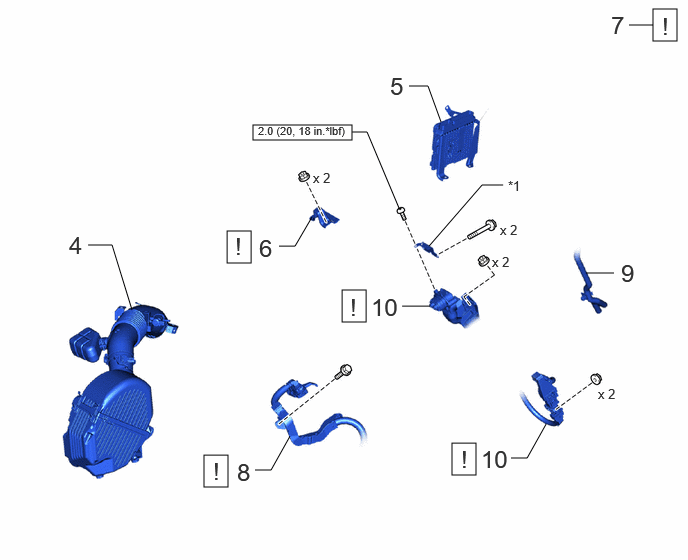

Fig 2: Inverter With Converter (For PHEV Model) Removal Components With Torque Specifications (2 Of 4)

Procedure		Part Name Code
4	AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE	-	-	-	-
5	ECM	89661	-	-	-
6	NO. 2 INVERTER PROTECTOR	G921F	See step 6	-	-
7	CHECK TERMINAL VOLTAGE	-	See step 7	-	-
8	ENGINE ROOM MAIN WIRE	82111	See step 8	-	-
9	NO. 2 FUEL VAPOR FEED HOSE ASSEMBLY	23830	-	-	-
10	FLOOR UNDER WIRE	821H1	See step 10	-	-

*1	Connector Cover Assembly	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Inverter With Converter (For PHEV Model) Removal Components (3 Of 4)

Procedure		Part Name Code
11	ENGINE WIRE	82121	See step 11	-	-
12	NO. 4 INVERTER COOLING HOSE	G9228A	See step 12	-	-
13	NO. 3 INVERTER COOLING HOSE	G9227A	See step 13	-	-
14	UPPER INVERTER COVER SUB-ASSEMBLY	G9022A	See step 14	-	-
15	MOTOR CABLE	G1148	See step 15	-	-

NO. 1 VENTILATION HOSE

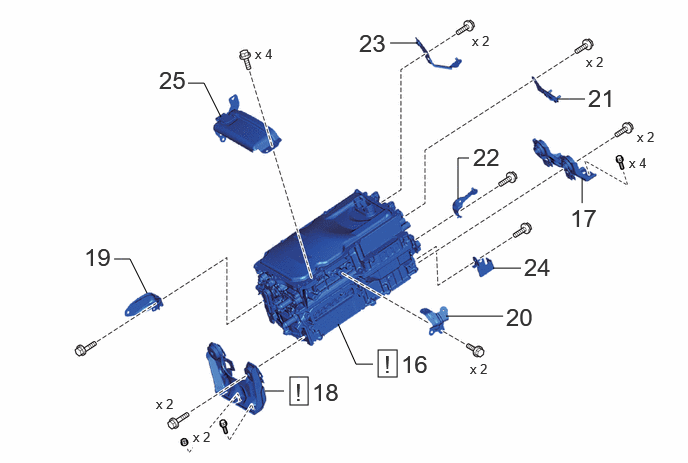

Fig 4: Inverter With Converter (For PHEV Model) Removal Components (4 Of 4)

Procedure		Part Name Code
16	HYBRID MOTOR CONTROL INVERTER ASSEMBLY	G92A0	See step 16	-	-
17	NO. 1 INVERTER BRACKET	G9214	See step 17	-	-
18	NO. 2 INVERTER BRACKET	G9215	-	-	-
19	NO. 1 WATER HOSE CLAMP BRACKET	16575D	-	-	-
20	WIRE HARNESS CLAMP BRACKET	-	-	-	-
21	WIRE HARNESS CLAMP BRACKET	-	-	-	-
22	WIRE HARNESS CLAMP BRACKET	-	-	-	-
23	WIRE HARNESS CLAMP BRACKET	-	-	-	-
24	WIRE HARNESS CLAMP BRACKET	-	-	-	-
25	HYBRID INVERTER PROTECTOR ASSEMBLY	G92D0	-	-	-
