On-Vehicle Inspection [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT CABLE EV CHARGER LOCK ASSEMBLY

Charging connector lock operation inspection

Push in the push lifter, perform the door lock operation, and check that the lock pin of the EV charge lock assembly operates.

WARNING:

Do not place your hand or fingers under the lock pin while performing this inspection as they may be pinched when the lock pin operates.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

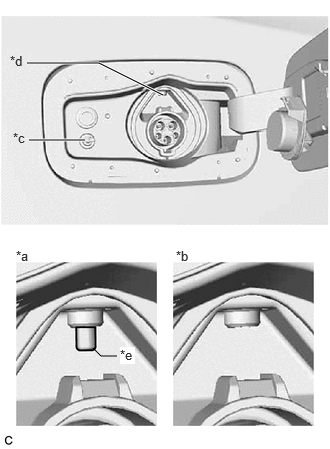

*a	Locked
*b	Unlocked
*c	Push Lifter
*d	Charging Connector Lock
*e	Lock Pin

HINT:

Confirm that the auxiliary battery is normal before performing this inspection.

Refer to ON-VEHICLE INSPECTION [12/2023 - ]

INSPECT INLET AC CHARGER CABLE

Check that the terminals of the inlet charger cable (charging inlet side) are not bent or deformed.

The terminals are not bent or deformed.

HINT:

If the result is not as specified, replace the inlet charger cable.

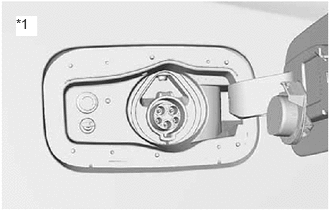

*1	Inlet AC Charger Cable (Charging Inlet Side)
