DTC P3000-4B: Hybrid/EV Battery Control System Over Temperature [09/2023 - ]: Procedure

Pre-procedure1

• None.

• Check for DTCs.

  Powertrain > Hybrid Control > Trouble Codes

  Result

  Result	Proceed to
  Only P3000-4B is output	A
  P3000-4B and other DTCs are output	B

Post-procedure1

• Turn the ignition switch off.

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2023 - ]

Result:

A

See step  2

Pre-procedure1

• None.

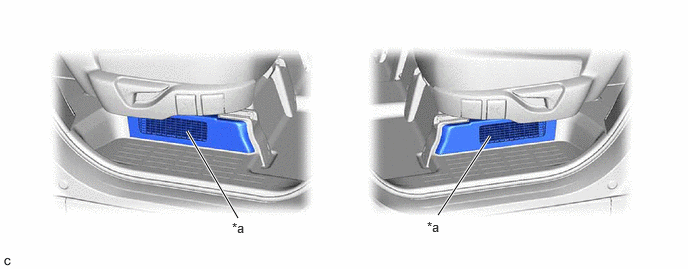

• Check the HV battery cooling system intake port for blockage.

  HINT:

  If anything is blocking the HV battery cooling system intake port, remove it.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a

  Intake Port

  -

  -

• Clean the No. 1 HV battery intake filter.

  Refer to INSPECTION [09/2023 - ]

  Result

  Proceed to
  NEXT

Post-procedure1

• None.

Result:

NEXT

See step  3

Pre-procedure1

• None.

• Read the Freeze Frame Data of DTC P3000-4B.

  Powertrain > Hybrid Control > DTC(P3000-4B) > Freeze Frame Data

  Tester Display
  VH-Voltage after Boosting
  Hybrid/EV Battery Block 1 Voltage
  Hybrid/EV Battery Block 2 Voltage
  Hybrid/EV Battery Block 3 Voltage
  Hybrid/EV Battery Block 4 Voltage
  Hybrid/EV Battery Block 5 Voltage
  Hybrid/EV Battery Block 6 Voltage
  Hybrid/EV Battery Block 7 Voltage
  Hybrid/EV Battery Block 8 Voltage
  Hybrid/EV Battery Block 9 Voltage
  Hybrid/EV Battery Block 10 Voltage

  NOTE:

  Although Freeze Frame Data is recorded before and after a DTC is stored, for this step it is only necessary to read the Freeze Frame Data recorded before "0s" (when the DTC was stored).

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	Freeze Frame Data Recorded
  *b	DTC Stored
  *c	Time

  Result

  Result	Proceed to
  Other than below	A
  The difference between the value of "VH-Voltage after Boosting" and the total of "Hybrid/EV Battery Block 1 to 10 Voltage" is 10 V or more.	B

Post-procedure1

• Turn the ignition switch off.

Result:

B

See step  6

Result:

A

See step  4

Pre-procedure1

• None.

• Read the Freeze Frame Data of DTC P3000-4B.
  NOTE:

  Although Freeze Frame Data is recorded before and after a DTC is stored, for this step it is only necessary to read the Freeze Frame Data recorded at "0s" (when the DTC was stored).

  Powertrain > Hybrid Control > DTC(P3000-4B) > Freeze Frame Data

  Tester Display
  Hybrid/EV Battery Temperature 1
  Hybrid/EV Battery Temperature 2
  Hybrid/EV Battery Temperature 3
  Hybrid/EV Battery Temperature 4
  Hybrid/EV Battery Temperature 5
  Hybrid/EV Battery Temperature 6

  Result

  Result	Proceed to
  Other than below	A
  The value of any of "Hybrid/EV Battery Temperature 1 to 6" is 80°C (176°F) or more.	B

Post-procedure1

• Turn the ignition switch off.

Result:

B

See step  7

Result:

A

See step  5

Pre-procedure1

• According to the display on the GTS, read the Data List and check that the value of each "Hybrid/EV Battery Temperature 1 to 6" is 40°C (104°F) or less.

  HINT:

  If the value of any of "Hybrid/EV Battery Temperature 1 to 6" is more than 40°C (104°F), turn the ignition switch off and wait until the values to decrease to 40°C (104°F) or less before continuing this procedure.

  Powertrain > Hybrid Control > Data List

  Tester Display
  Hybrid/EV Battery Temperature 1
  Hybrid/EV Battery Temperature 2
  Hybrid/EV Battery Temperature 3
  Hybrid/EV Battery Temperature 4
  Hybrid/EV Battery Temperature 5
  Hybrid/EV Battery Temperature 6

• According to the display on the GTS, read the Data List and check the value of each "Hybrid/EV Battery Block 1 to 10 Voltage" with the ignition switch ON.

  Powertrain > Hybrid Control > Data List

  Tester Display
  Hybrid/EV Battery Block 1 Voltage
  Hybrid/EV Battery Block 2 Voltage
  Hybrid/EV Battery Block 3 Voltage
  Hybrid/EV Battery Block 4 Voltage
  Hybrid/EV Battery Block 5 Voltage
  Hybrid/EV Battery Block 6 Voltage
  Hybrid/EV Battery Block 7 Voltage
  Hybrid/EV Battery Block 8 Voltage
  Hybrid/EV Battery Block 9 Voltage
  Hybrid/EV Battery Block 10 Voltage

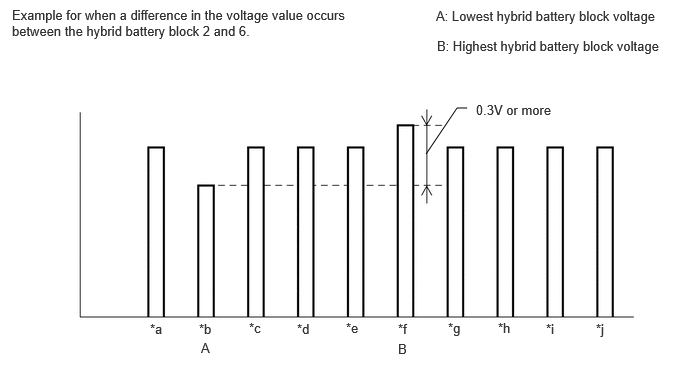

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	Hybrid/EV Battery Block 1 Voltage	*b	Hybrid/EV Battery Block 2 Voltage
  *c	Hybrid/EV Battery Block 3 Voltage	*d	Hybrid/EV Battery Block 4 Voltage
  *e	Hybrid/EV Battery Block 5 Voltage	*f	Hybrid/EV Battery Block 6 Voltage
  *g	Hybrid/EV Battery Block 7 Voltage	*h	Hybrid/EV Battery Block 8 Voltage
  *i	Hybrid/EV Battery Block 9 Voltage	*j	Hybrid/EV Battery Block 10 Voltage

  Result

  Result	Proceed to
  Other than below	A
  The difference between the lowest and highest Hybrid/EV Battery Block Voltage is 0.3 V or more.	B

Post-procedure1

• Turn the ignition switch off.

Result:

A

END

Result:

B

See step  7

HINT:

Refer to REMOVAL [09/2023 - ]

Result

Result:

NEXT

REPLACE HV BATTERY. Refer to  REMOVAL [09/2023 - ]

HINT:

Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

Result

Result:

NEXT

REPLACE HV BATTERY. Refer to  REMOVAL [09/2023 - ]
