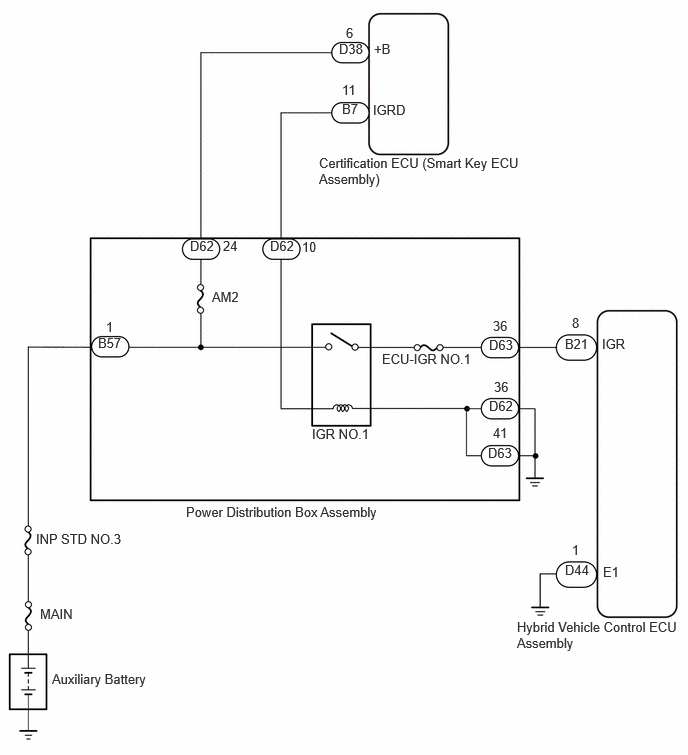

DTC P2533-14: Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open [09/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
