The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine unit removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [09/2023 - ]
Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly Replacement of camshaft (for intake or exhaust camshaft) Replacement of camshaft timing gear assembly Replacement of camshaft timing exhaust gear assembly Replacement of fuel (engine room side) pump assembly (for high pressure side) Replacement of ignition coil assembly Replacement of EGR valve assembly Gas leak from exhaust system is repaired Replacement of engine assembly Replacement of cylinder head sub-assembly Replacement of direct fuel injector assembly Replacement of engine coolant temperature sensor Replacement of spark plug Replacement of knock control sensor Replacement of piston or piston ring	Inspection After Repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [12/2023 - ]
Replacement of ECM	Perform Vehicle Identification Number (VIN) registration	DTC is output	Refer to REGISTRATION [12/2023 - ]
Replacement of ECM	Update ECU security key	Vehicle Control History (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [09/2023 - ]
Replacement of hybrid motor control inverter assembly	ECU configuration	-	Refer to ECU CONFIGURATION [09/2023 - ]
Replacement of hybrid motor control inverter assembly	Front Resolver Correction value Registration Front Resolver Correction value Writing	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [12/2023 - ]
Replacement of service plug grip	High voltage fuse accumulated load history reset	DTCs are stored	Refer to UTILITY [12/2023 - ]
Replacement of hybrid vehicle transaxle assembly	Front Resolver Correction value Writing	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [12/2023 - ]
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [09/2023 - ]
	w/ Automatic Headlight Beam Level Control System: Perform headlight ECU (headlight assembly LH) initialization	Lighting System (EXT)	Refer to INITIALIZATION [09/2023 - ]
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [12/2023 - ]
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [09/2023 - ]
Replacement of front bumper assembly*3	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
Replacement of front bumper assembly*3	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [09/2023 - ]
Front wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Brake system warning light (yellow indicator) illuminates Slip indicator light illuminates Electronically controlled brake system disabled or malfunctions	Refer to RESET MEMORY / CALIBRATION [09/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting System (w/ Automatic Headlight Beam Level Control System)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (DISASSEMBLY)

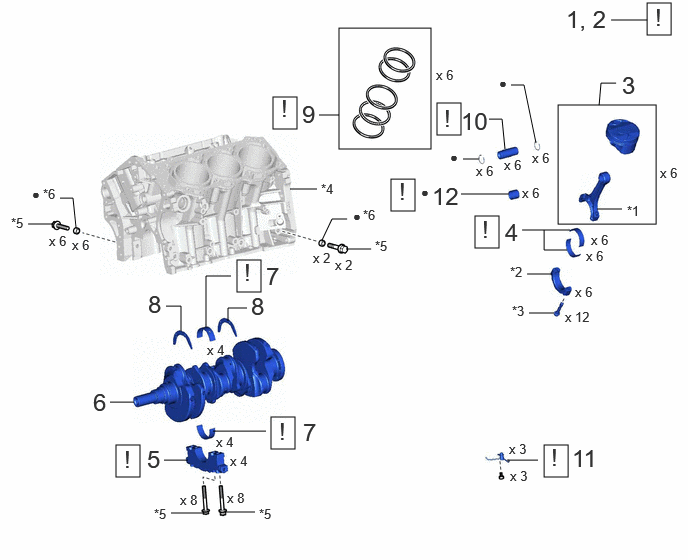

Fig 1: Cylinder Block Disassembly Components (1 Of 2)

Procedure		Part Name Code
1	INSPECT CONNECTING ROD THRUST CLEARANCE	-	See step 1	-	-
2	INSPECT CONNECTING ROD OIL CLEARANCE	-	See step 2	-	-
3	PISTON WITH CONNECTING ROD	-	-	-	-
4	CONNECTING ROD BEARING	13041	See step 4	-	-
5	CRANKSHAFT BEARING CAP	-	See step 5	-	-
6	CRANKSHAFT	13411	-	-	-
7	CRANKSHAFT BEARING	11711	See step 7	-	-
8	CRANKSHAFT THRUST WASHER SET	11011	-	-	-
9	PISTON RING SET	13011	See step 9	-	-
10	PISTON PIN	-	See step 10	-	-
11	NO. 1 OIL NOZZLE SUB-ASSEMBLY	15708	See step 11	-	-
12	CONNECTING ROD SMALL END BUSH	-	See step 12	-	-

*1	CONNECTING ROD	*2	CONNECTING ROD BEARING CAP
*3	CONNECTING ROD BOLT	*4	CYLINDER BLOCK SUB-ASSEMBLY
*5	CRANKSHAFT BEARING CAP SET BOLT	*6	SEAL WASHER
•	Non-reusable part	-	-

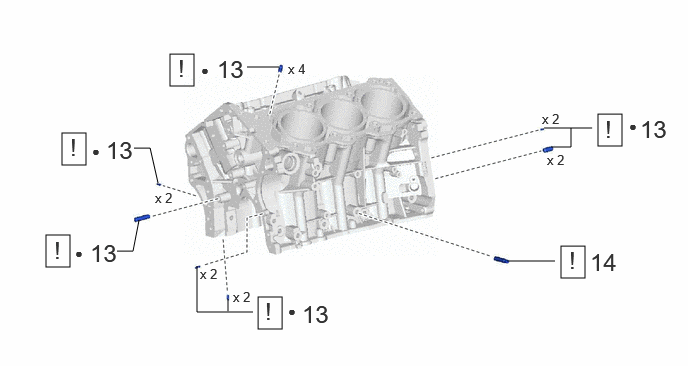

Fig 2: Cylinder Block Disassembly Components (2 Of 2)

Procedure		Part Name Code
13	STRAIGHT PIN	-	See step 13	-	-
14	STUD BOLT	-	See step 14	-	-

•

Non-reusable part
