Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Auxiliary battery terminal is disconnected/reconnected Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly Parking Support Brake System* Refer to INITIALIZATION [09/2023 - ]
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Replacement of port fuel injector assembly
Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.
Refer to INITIALIZATION [12/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual is displayed on the multi-information display.

NOTE:
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

  • To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lighting System (w/ Automatic Headlight Beam Level Control System) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


COMPONENTS (REMOVAL)

Fig 1: Intake Manifold Removal Components (1 Of 3)
GTY1236047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 PRECAUTION - See step  1 - -
2 DISCHARGE FUEL SYSTEM PRESSURE - See step  2 - -
3 THROTTLE BODY WITH MOTOR ASSEMBLY 22030 - - -
4 V-BANK COVER SUB-ASSEMBLY 11209 See step  4 - -
5 NO. 1 ENGINE COVER 12611 - - -

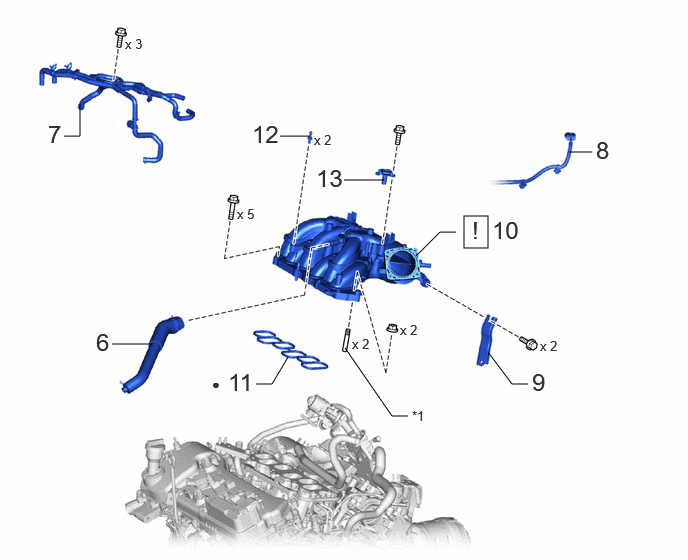

Fig 2: Intake Manifold Removal Components (2 Of 3)
GTY1227854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
6 VENTILATION HOSE 12261 - - -
7 WATER BY-PASS HOSE SUB-ASSEMBLY - - - -
8 ENGINE WIRE 82121 - - -
9 NO. 2 SURGE TANK STAY 17126 - - -
10 INTAKE AIR SURGE TANK ASSEMBLY 17190 See step  10 - -
11 AIR SURGE TANK TO INTAKE MANIFOLD GASKET 17176 - - -
12 NO. 1 V-BANK COVER BRACKET 11254 - - -
13 MANIFOLD ABSOLUTE PRESSURE SENSOR (E.F.I. VACUUM SENSOR ASSEMBLY) 89421 - - -
*1 STUD BOLT - -
Non-reusable part - -

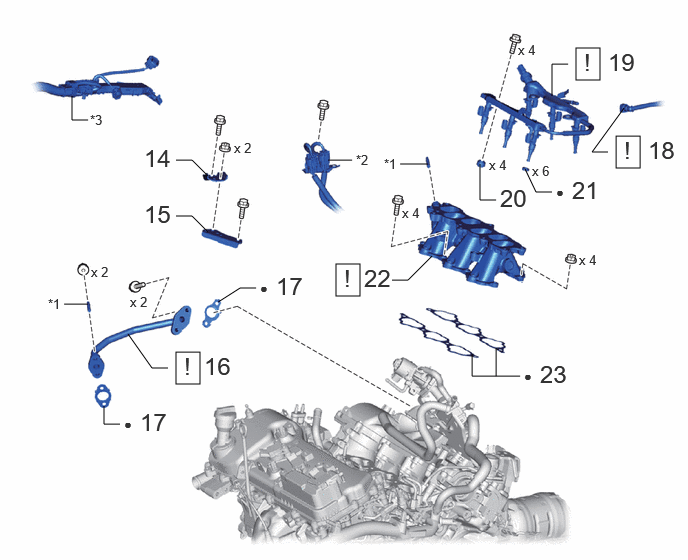

Fig 3: Intake Manifold Removal Components (3 Of 3)
GTY1239973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
14 NO. 2 ENGINE MOUNTING STAY RH 12327A - - -
15 REAR ENGINE MOUNTING STAY RH 12327 - - -
16 NO. 2 EGR PIPE 25612 See step  16 - -
17 NO. 2 EGR PIPE GASKET 25629A - - -
18 NO. 1 FUEL HOSE 23801F See step  18 - -
19 FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY 23800 See step  19 - -
20 NO. 1 DELIVERY PIPE SPACER 23807V - - -
21 INJECTOR VIBRATION INSULATOR 23291A - - -
22 INTAKE MANIFOLD 17111 See step  22 - -
23 NO. 1 INTAKE MANIFOLD TO HEAD GASKET 17177 - - -
*1 STUD BOLT *2 WIRE HARNESS CLAMP BRACKET
*3 ENGINE WIRE - -
Non-reusable part - -
