Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe sub-assembly, front No. 2 exhaust pipe sub-assembly, front exhaust pipe assembly and tail exhaust pipe assembly removal/installation are shown below.

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Fig 1: Do Not Touch The Engine, Exhaust Pipe Or Other High Temperature Components While The Engine Is Hot

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMPONENTS (REMOVAL)

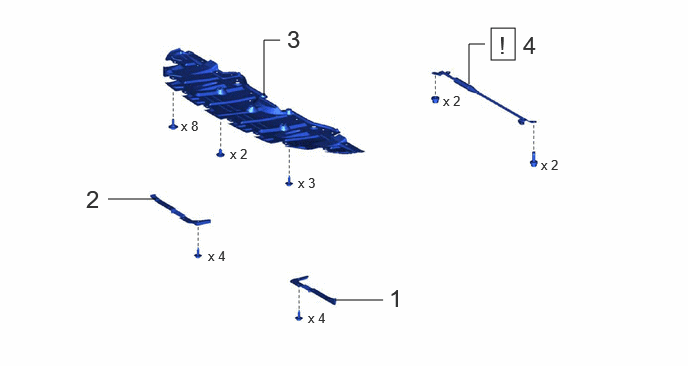

Fig 1: Exhaust Pipe Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
2	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-
3	NO. 1 ENGINE UNDER COVER	51441	-	-	-
4	SUSPENSION TOWER DAMPER	48691E	See step  4	-	-

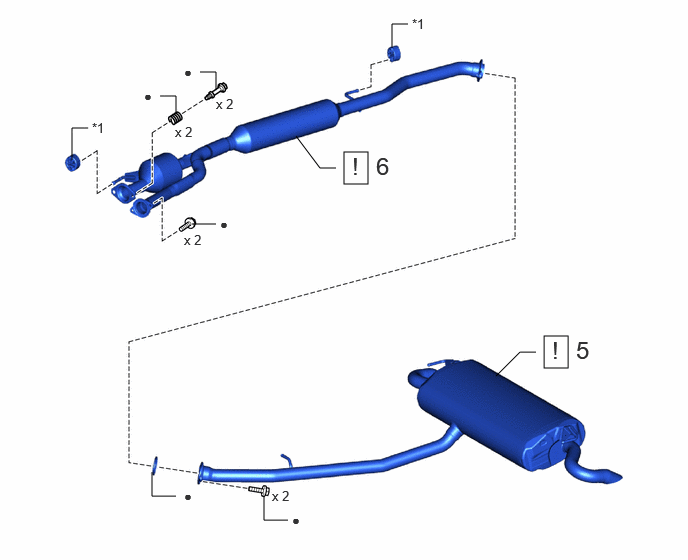

Fig 2: Exhaust Pipe Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
5	TAIL EXHAUST PIPE ASSEMBLY	17430	See step  5	-	-
6	FRONT EXHAUST PIPE ASSEMBLY	17410	See step  6	-	-

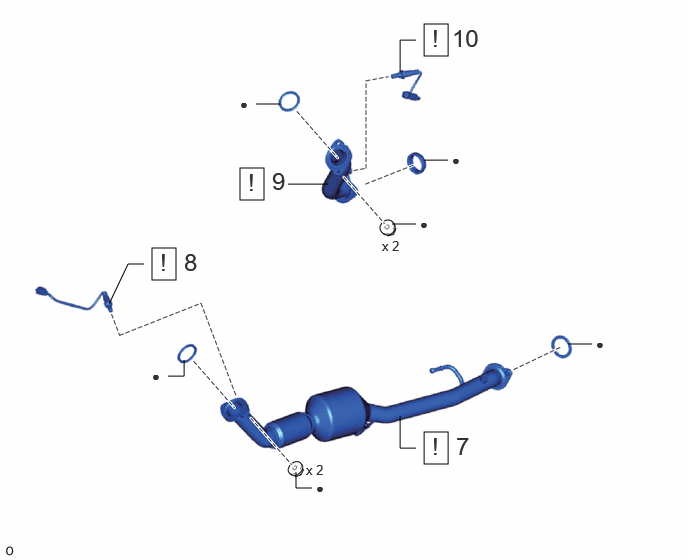

Fig 3: Exhaust Pipe Removal Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
7	FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY	17402	See step  7	-	-
8	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)	89467D	See step  8	-	-
9	FRONT EXHAUST PIPE SUB-ASSEMBLY	17401	See step  9	-	-
10	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	89467E	See step  10	-	-
