COMPONENTS (INSTALLATION)

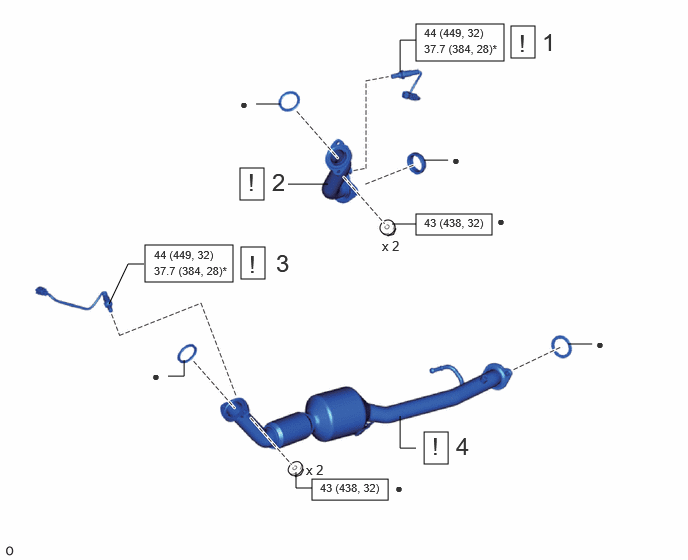

Fig 1: Exhaust Pipe Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	89467E	See step 1	-	-
2	FRONT EXHAUST PIPE SUB-ASSEMBLY	17401	See step 2	-	-
3	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)	89467D	See step 3	-	-
4	FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY	17402	See step 4	-	-

	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	For use with SST	-	-

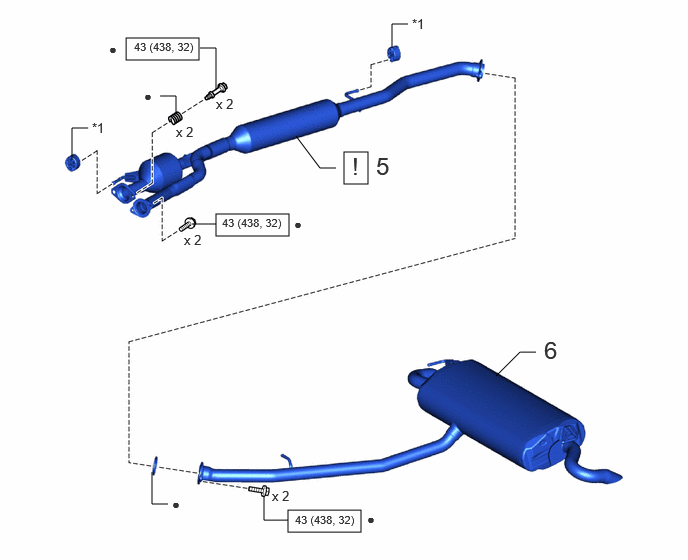

Fig 2: Exhaust Pipe Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
5	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 6	-	-
6	TAIL EXHAUST PIPE ASSEMBLY	17430	-	-	-

*1	NO. 4 EXHAUST PIPE SUPPORT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

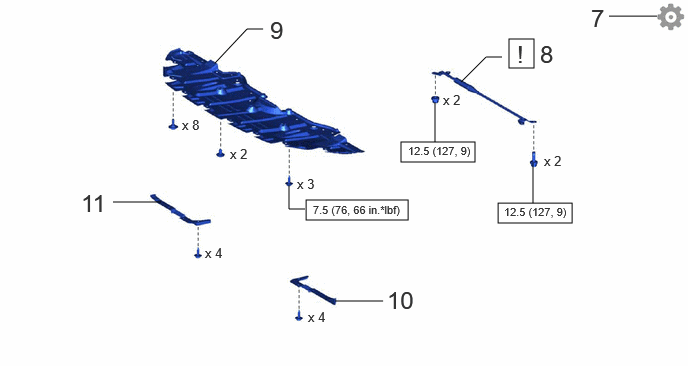

Fig 3: Exhaust Pipe Installation Components With Torque Specifications (3 Of 3)

Procedure		Part Name Code
7	INSPECT FOR EXHAUST GAS LEAK	-	-	-	See step 7
8	SUSPENSION TOWER DAMPER	48691E	See step 8	-	-
9	NO. 1 ENGINE UNDER COVER	51441	-	-	-
10	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
11	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque
