Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during engine water pump assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative auxiliary battery terminal | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [09/2023 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. | Refer to PRECAUTION [09/2023 - ] |
| Lighting System (w/ Automatic Headlight Beam Level Control System) | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | Refer to INITIALIZATION [09/2023 - ] |
| Front Camera System | ||
| Adaptive High Beam System |
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [09/2023 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |

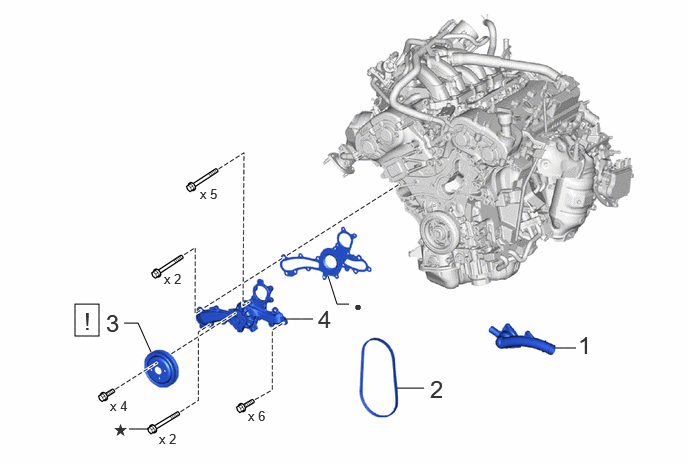

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | 16031 | - | - | - |
| 2 | V-RIBBED BELT | 16361A | - | - | - |
| 3 | WATER PUMP PULLEY | 16173 | See step 3 | - | - |
| 4 | ENGINE WATER PUMP ASSEMBLY | 16100 | - | - | - |
| • | Non-reusable part | * | Precoated part |
