Components [09/2023 - ]

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

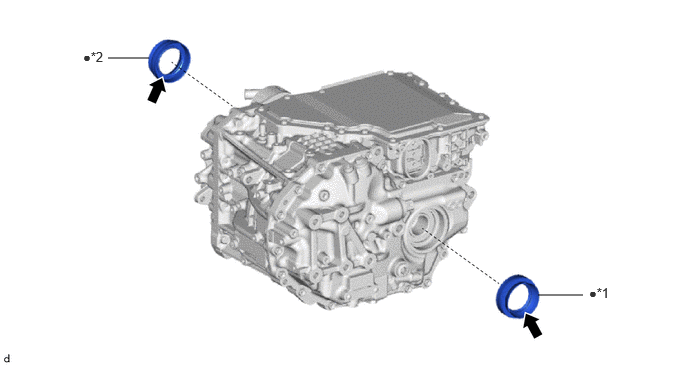

Fig 1: Hybrid Transaxle Side Gear Oil Seal Replacement Components
GTY1128197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR DRIVE SHAFT OIL SEAL LH *2 REAR DRIVE SHAFT OIL SEAL RH
• Non-reusable part MP grease
